Mr Pex 3320200 2 loop 1-1/2 inches chrome plated brass manifold with flowmeter and ball valve

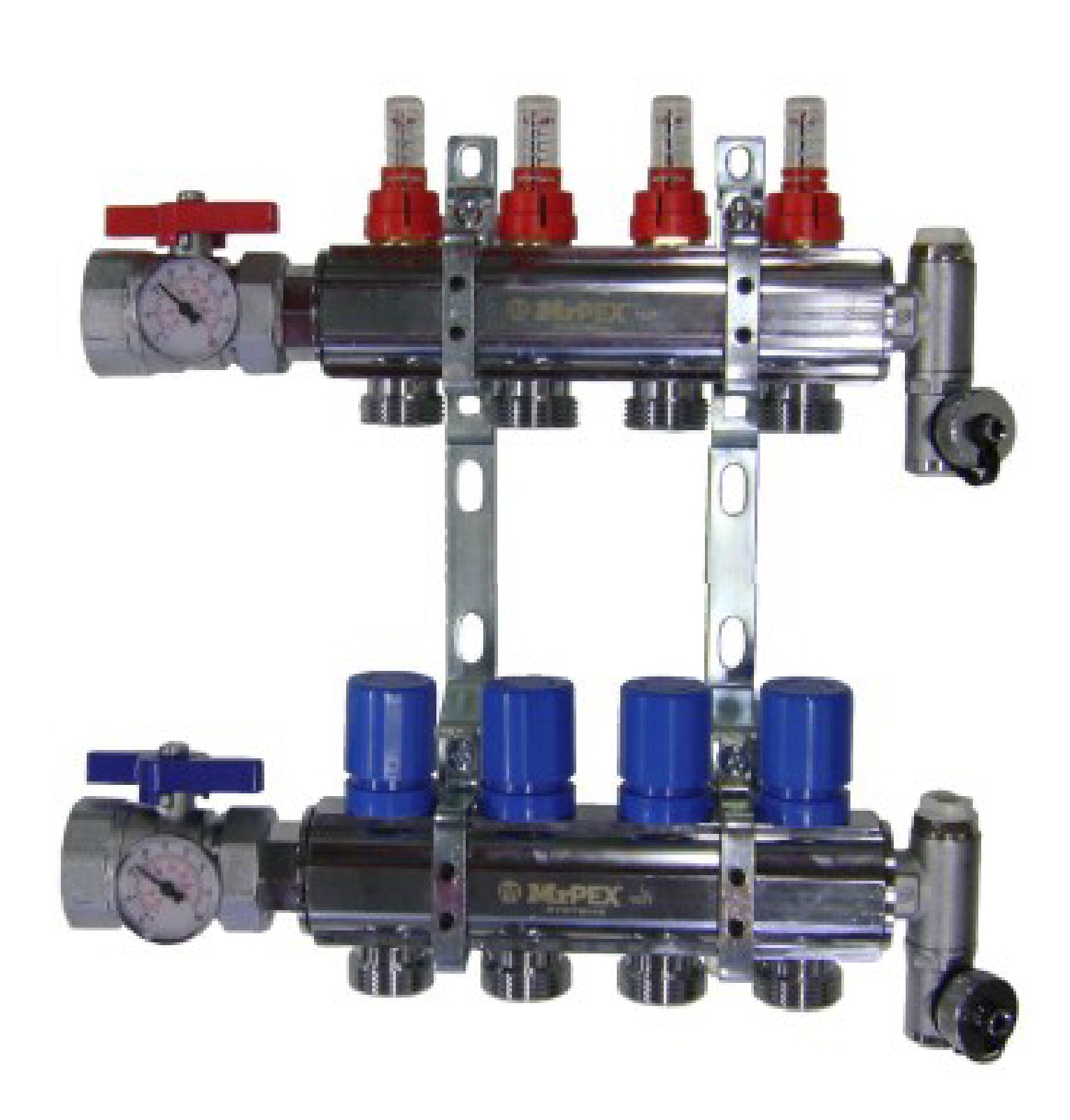

Product Description

The MR PEX 3320200 manifold is a 2-loop, 1-1/2" chrome plated brass manifold designed for heating applications. Made from high-quality extruded brass, it features adjustable flow-meters on the supply side for flows up to 1.6 gpm per loop, and on/off valves on the return side. It accommodates PEX and PEX-AL-PEX tubing with 3/4" or 5/8" PEX sizes, and the manifold body supports flows up to 22 gpm, ensuring efficient hydronic system distribution.

• Made from high-quality extruded brass for durability
• Supply side features balancing manifold with adjustable flow-meters for flows up to 1.6 gpm per loop
• Both supply and return sides feature a valved manifold with on/off valves for precise control

Product Highlights

High-quality extruded brass manifold with adjustable flow-meters and on/off valves for efficient heating system control.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3320200

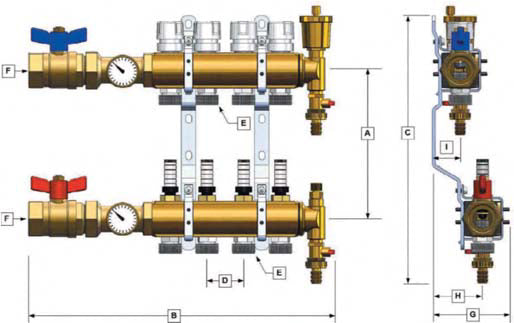

Technical Specifications

• PEX Size: 3/4", 5/8"
• Number of Outlets: 2
• Supply Connection Size: 1-1/4" FNPT
• Loop Connection Type: EK25
• Main Supply Connection: BSP
• Material: Brass
• Application: Heating
• Fitting System Compatibility: PEX Compression, PEX-AL-PEX Compression
• Tubing Compatibility: PEX, PEX-AL-PEX
• Manifold Body Material: ASTM B124 C37700 (CW612N EN12168)
• Brass Components Material: ASTM B124 C37700 (CW614N and CW617N)
• Operating Pressure: 87 psi
• Maximum Pressure: 145 psi (at 70°F)
• Maximum Continuous Working Temperature: 160°F
• Maximum Intermittent Working Temperature: 185°F (maximum 10 minutes/day)
• Maximum Differential Pressure: 14.5 psi
• Fluids Allowed: Water/Up to 50% Propylene glycol
• Flow Indication Scale: 0 to 2 GPM (precision +/- 10%)
• Thermometer Scale: 32 to 175°F
• Supply Balancing Flowmeter Cv: 1.39
• Return Interception Valve Cv: 3.24
• Manifold Union Connection: G1-1/4″ Female Swivel Nut Flat Seat
• Ball Valve Connection: 1-1/4″ NPT Female x G1-14″ Male Flat Seat
• Fill and Drain Valve Connections: 3/4″ GHT
• Actuator Adapter Connection: M30x1.5
• Working Temperature Range: 41°F to 158°F
• Combined Branch Cv Value: 1.64 gpm
• Manifold Body Flow Capacity: 22 gpm
