Mr Pex 3261100 1 1/2 in Stainless Steel Manifold Assembly with Inline Flowmeter (11 Branches)

Product Description

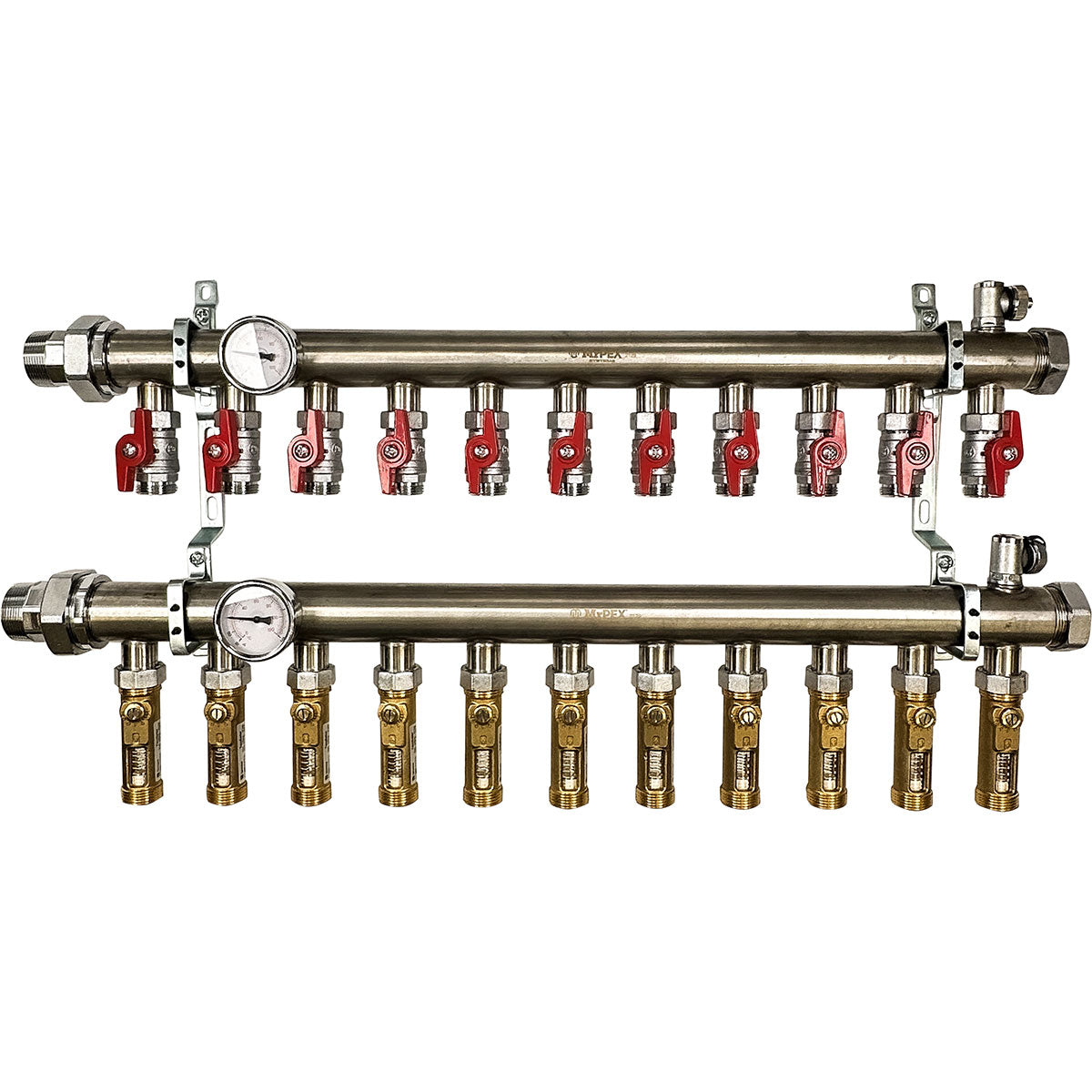

The Mr Pex 3261100 stainless steel manifold assembly is an 11-branch supply and return body designed for hydronic or plumbing distribution, with factory-mounted end cap, vent, and drain/purge valve. The Type 304 stainless steel manifold has 1 1/2 in NPT flat gasket unions on supply and return, G 1" x EK25 branch connections, and inline visual flowmeters (2-8 GPM) with built-in balancing valves. Compatible with PEX and PEX-AL-PEX via EK25 fittings. Rated to 145 psi (max) and accepts water or up to 50% propylene glycol.

• Type 304 stainless steel body with factory-mounted end cap, vent, and drain/purge valve
• 1 1/2 in NPT flat gasket supply/return unions and G 1" x EK25 branch connections
• Inline visual flowmeters on returns (2-8 GPM) with built-in balancing valves

Product Highlights

11-branch Type 304 stainless steel manifold with 1 1/2 in trunk, EK25 branch connections, inline flowmeters (2-8 GPM), and factory-mounted vent and drain/purge valve.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3261100

Technical Specifications

• Brand: Mr Pex
• Manufacturer Part Number: 3261100
• Material: Type 304 stainless steel and brass
• Number of Branches: 11
• Trunk Connection: 1 1/2 in
• Supply/Return Inlet: 1 1/2 in NPT flat gasket union
• Branch Connection: G 1" x EK25 (EK25 Eurocone)
• Flowmeter Range: 2-8 GPM
• Built-in Balancing Valves: Yes (on return flowmeters)
• Maximum Pressure at 70°F: 145 psi
• Accepted Media: Water, up to 50% propylene glycol
• Available Loop Configurations: 3 to 13 loops (this listing: 11 loops)
• UPC: 603981263039
• ERP Number: MPEX-3261100
• Cv Value: 6 Cv
