MR PEX 3260400 1 1/2 Stainless Steel Manifold

Product Description

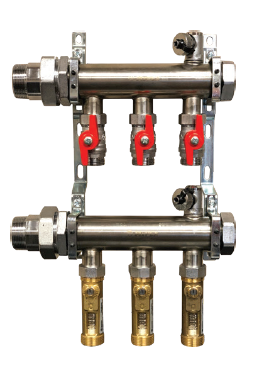

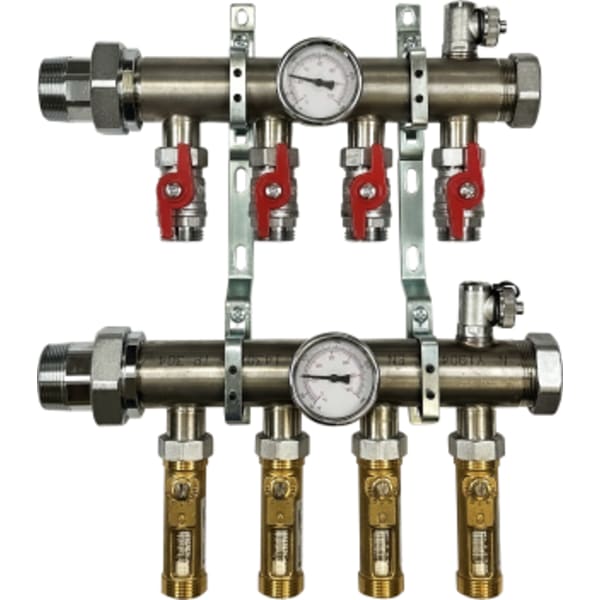

The MR PEX 3260400 is a stainless steel manifold made from Type 304 stainless steel. This manifold comes fully assembled and is available in configurations ranging from three to thirteen loops. It is designed with a 1 1/2 NPT flat gasket union for both supply and return inlets. Key components include a factory-mounted end cap, a vent, and a drain/purge valve.

• Constructed from Type 304 stainless steel
• Features 1 1/2 NPT flat gasket union for supply and return
• Includes on/off valves and visual flowmeters with balancing valves

Product Highlights

This manifold is ideal for water distribution and can handle up to fifty percent propylene glycol, making it suitable for various heating systems.

Product Information

Standard Information

• Country of Origin:
• UPC:

Technical Specifications

• Material: Stainless Steel and Brass
• Operating Pressure: 87 psi
• Max Pressure @ 70 degrees F: 145 psi
• Max Differential Pressure: 14.5 psi
• CV Value: 6 Cv
• Accepted Media: Water, up to 50% propylene glycol
• Loop Connection: EK25 (G1 Eurocone)
• Available Sizes: 3-13 loops
