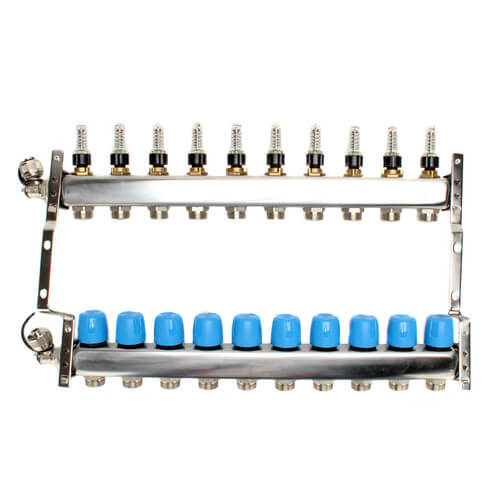

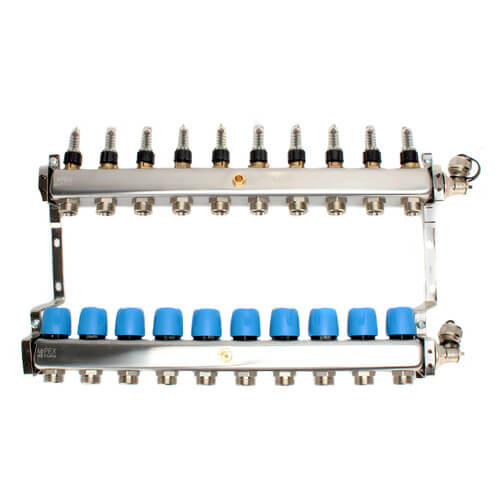

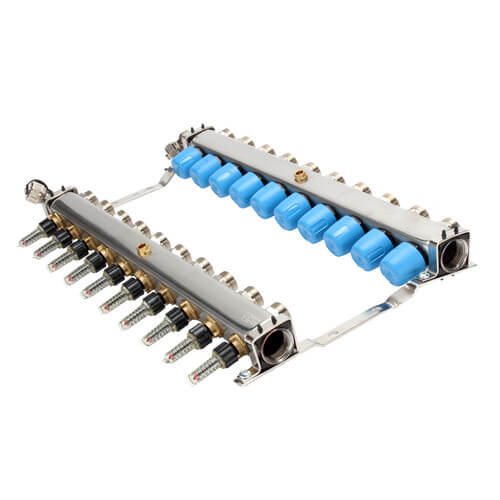

Mr Pex 3231000 10 loop 1-1/4 inches stainless steel manifold

Product Description

The MR PEX 3231000 is a 10-loop, 1-1/4" stainless steel manifold designed for heating applications. Constructed from high-grade Type 304 stainless steel, it offers superior long-term corrosion resistance. All fittings are nickel-plated to prevent contact corrosion. This fully assembled manifold features adjustable flow-meters on the supply side for precise flow control up to 1.45 gpm per loop, and balancing on/off valves on the return side, compliant with DIN EN 1264-4, for efficient PEX tubing system operation.

• High-grade Type 304 stainless steel construction ensures long-term corrosion resistance for heating systems.
• Adjustable flow-meters on the supply side allow precise flow control up to 1.45 gpm per loop.
• Fully assembled with nickel-plated fittings and balancing on/off valves for easy installation and system integrity.

Product Highlights

Durable 10-loop stainless steel manifold with integrated flow control for efficient PEX heating systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3231000

Technical Specifications

• Number of Outlets: 10
• Compatible PEX Tubing Sizes: 3/8", 1/2", 5/8"
• Manifold Max Flow Rate: 14 GPM
• Branch Cv Value: 1.38
• Main Inlet/Outlet Size: 1-1/4 inches
• Main Inlet/Outlet Connection Type: BSP
• Branch Connection Type: EK20
• Material: Stainless Steel
• Fitting System Compatibility: PEX-AL-PEX Compression, PEX Compression
• Tubing Compatibility: PEX, PEX-AL-PEX
• Application: Heating
