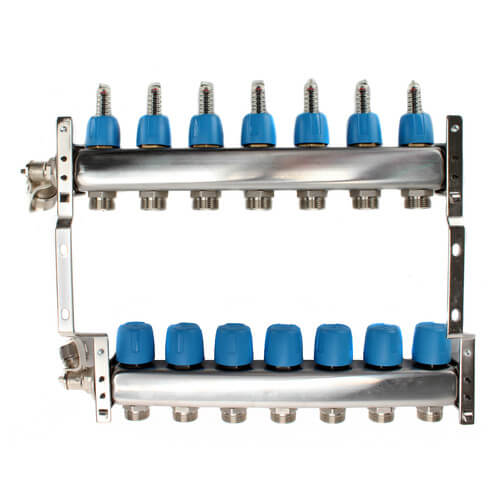

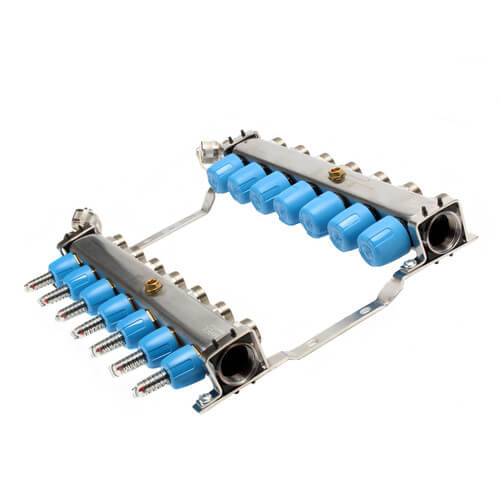

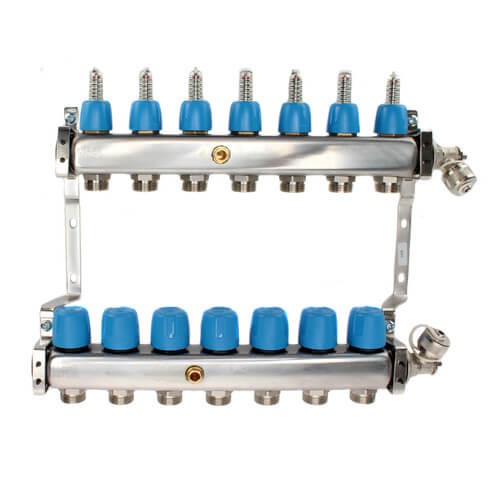

Mr Pex 3230700 7 loop 1-1/4 inches stainless steel manifold

Product Description

The MR PEX 3230700 is a 7-loop, 1-1/4" stainless steel manifold designed for radiant heating systems. Constructed from high-grade Type 304 stainless steel, it offers superior corrosion resistance. This fully assembled manifold features adjustable flow-meters on the supply side, supporting flows up to 1.45 gpm per loop, and balancing on/off valves on the return side. It accommodates a total flow rate of up to 14 gpm and is compatible with PEX and PEX-AL-PEX tubing using Eurokonus (EK20) connections for efficient heat distribution.

• Constructed from bright annealed high-grade Type 304 stainless steel for long-term corrosion resistance.
• Features adjustable flow-meters on the supply side (up to 1.45 gpm per loop) and balancing on/off valves on the return side.
• Compatible with PEX and PEX-AL-PEX tubing via Eurokonus (EK20) connections, ideal for heating applications.

Product Highlights

Fully assembled 7-loop stainless steel manifold with adjustable flow control for efficient radiant heating systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3230700

Technical Specifications

• Number of Outlets: 7
• PEX Size: 3/8", 1/2", 5/8"
• Flow Capacity (Cv): 1.38
• Flow Rate (GPM): 14
• Supply Connection: BSP
• Supply Size: 1"
• Loop Thread: EK20
• Material: Stainless Steel
• Fitting System Compatibility: PEX Compression, PEX-AL-PEX Compression
• Tubing Compatibility: PEX-AL-PEX, PEX
• Application: Heating
