Mr Pex 3230200 2 Loop 1-1/4 inches Stainless Steel Manifold

Product Description

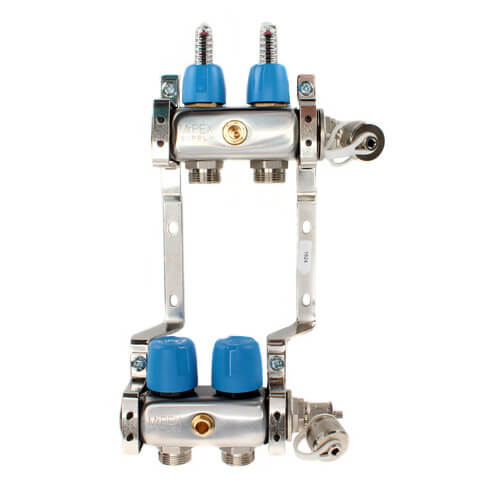

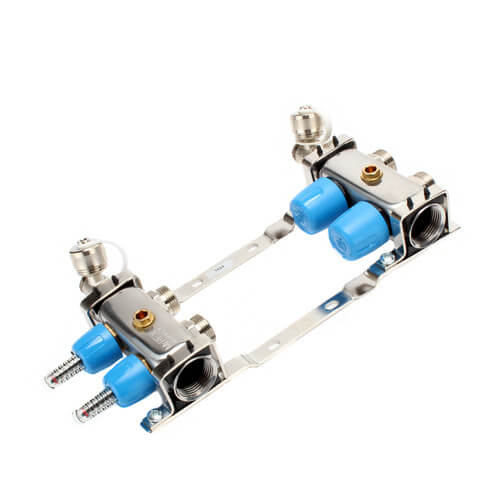

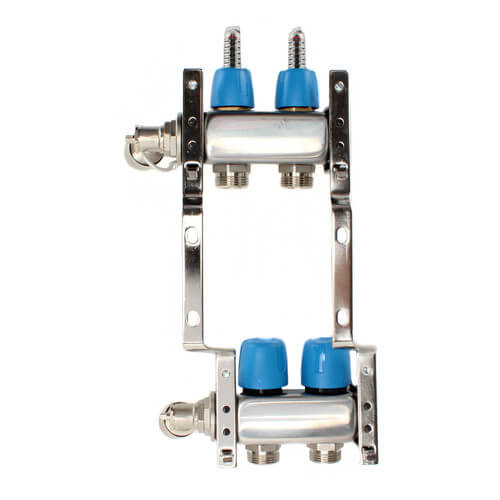

The MR PEX 3230200 is a 2 Loop 1-1/4" Stainless Steel Manifold, fully assembled for radiant heating. It features high-grade Type 304 stainless steel for corrosion resistance and nickel-plated fittings. Adjustable flow-meters on the supply side provide precise control up to 1.45 gpm per loop. The return side includes DIN EN 1264-4 compliant balancing on/off valves. Designed for PEX and PEX-AL-PEX tubing, it supports flows up to 14 gpm via G 1" BSP inlets and Eurokonus (EK20) branches.

• Highest level of long-term corrosion resistance due to bright annealed high-grade, Type 304, stainless steel with high nickel content.
• Fully assembled and ready for mounting, featuring adjustable flow-meters on the supply side for flows up to 1.45 gpm per loop.
• Return side includes balancing on/off valves (DIN EN 1264-4 compliant) with a removable cap for valve actuator accommodation.

Product Highlights

High-grade stainless steel manifold with integrated flow control and balancing valves for efficient radiant heating systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3230200
• Country of Origin: Italy

Technical Specifications

• Number of Loops: 2
• Compatible Tubing Sizes: 3/8", 1/2", 5/8" PEX, PEX-AL-PEX
• Branch Flow Coefficient (Cv): 1.38
• Manifold Body Flow Rate: 14 GPM
• Inlet Connection Size: 1"
• Inlet Connection Type: BSP
• Branch Connection Type: EK20
• Material: Stainless Steel
• Fitting System Compatibility: PEX Compression, PEX-AL-PEX Compression
• Application: Heating
