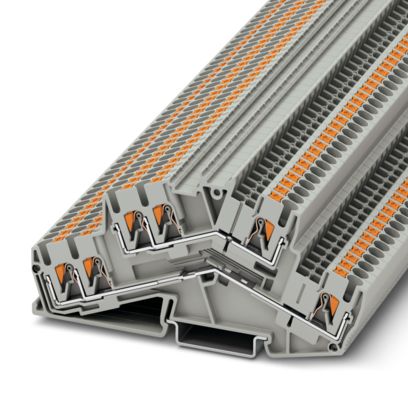

Mr Pex 3210600 Double Level Terminal Block 800V 20A

Product Description

The MR PEX 3210600 is a double-level terminal block designed for compact, high-density wiring applications in electrical panels and control cabinets. Rated at 800 volts nominal and 20 amps nominal current, this terminal block uses a push-in connection method on both the first and second levels, allowing fast, tool-free termination of conductors. It accepts wire cross sections ranging from 0.14 mm2 to 4 mm2, with a rated cross section of 2.5 mm2. The gray color coding is standard for general-purpose wiring. Electricians and panel builders install this component as part of organized terminal strip assemblies in industrial and commercial enclosures.

This terminal block is suited for use in residential, commercial, and light industrial electrical panels and control systems where space efficiency and reliable conductor termination are priorities. The double-level design allows two independent circuits to occupy the footprint of a single terminal, reducing rail space and simplifying wiring layouts. It is a practical choice for control panel fabricators, HVAC system integrators, and electricians building or servicing junction and distribution enclosures.

Key Features

• Double-level design accommodates two independent connections in a single terminal block footprint
• Push-in connection method on both levels for fast, tool-free wire termination
• Nominal voltage rating of 800 volts for broad application coverage
• Nominal current rating of 20 amps
• Wide wire range acceptance from 0.14 mm2 to 4 mm2
• Gray color for standard general-purpose circuit identification

Compatibility

Designed for DIN rail mounting on NS 35/7.5 and NS 35/15 standard rails, making it compatible with most industrial and commercial panel enclosures that use 35 mm DIN rail systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with applicable NEC requirements and local codes. De-energize the panel and verify the absence of voltage before installing or removing terminal blocks. Push-in connection terminals require conductors to be stripped to the appropriate length as specified by the manufacturer before insertion. Ensure the DIN rail is properly grounded and secured before snapping terminal blocks into position.

Technical Specifications

• Nominal Voltage: 800 V
• Nominal Current: 20 A
• Connection Method: Push-in connection, 1st and 2nd level
• Rated Cross Section: 2.5 mm2
• Wire Cross Section Range: 0.14 mm2 to 4 mm2
• Mounting Type: NS 35/7.5, NS 35/15 DIN rail
• Color: Gray

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3210600
