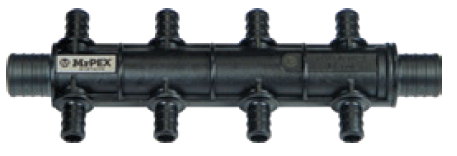

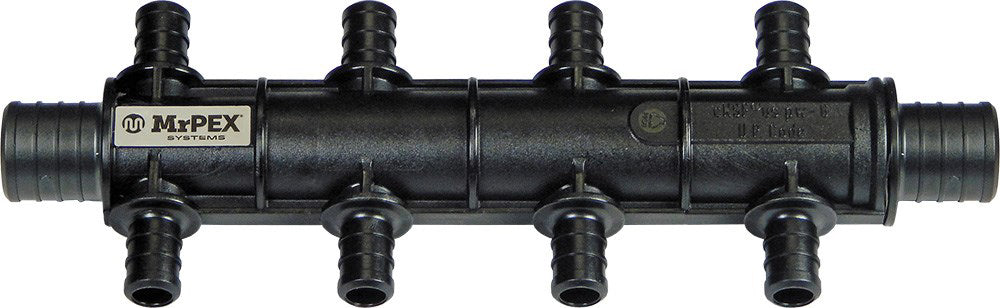

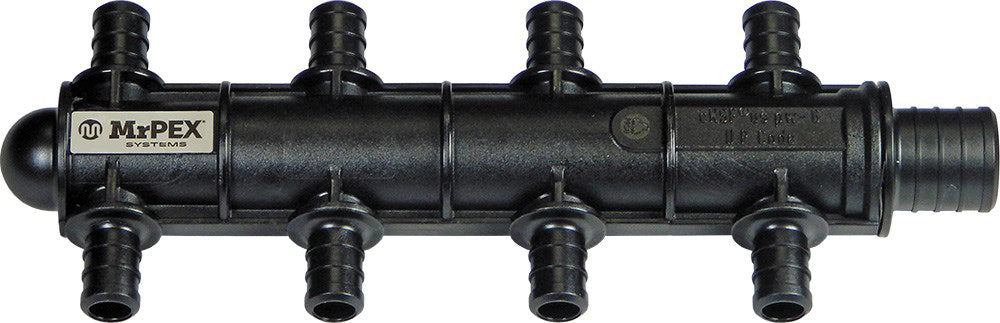

Mr Pex 3052061 Multiport Tee PPSU – Single Side – 1 in. PEX Inlet x 3/4 in. PEX End x 1/2 in. PEX (6 Branches)

Product Description

The MR PEX 3052061 multiport tee is made from a blend of engineered high-performance Polyphenylsulfone (PPSU) resin. These PPSU fittings are durable, lightweight, corrosion-free, and resistant to chlorine and other substances that may be present in today's potable water supply. This multiport tee meets ASTM F2159 standards and has 6 branches.

• Made from a blend of engineered high performance Polyphenylsulfone (PPSU) resin
• Durable and lightweight
• Corrosion free and resistant to chlorine

Product Highlights

The MR PEX multiport tee is a reliable replacement for brass and copper fittings, ideal for potable water supply systems.

Product Information

Standard Information

• Brand: MR PEX
• Manufacturer Part Number: 3052061

Technical Specifications

• Nominal Size: 1 in. PEX Inlet x 3/4 in. PEX End x 1/2 in. PEX
• Branches: 6
• Material: Polyphenylsulfone (PPSU)
• Operating Pressure Rating: 100 psi @ 180°F
• Barb Size 1/2" ID: 0.32 in.
• Barb Size 1/2" OD: 0.47 in.
• Barb Size 3/4" ID: 0.46 in.
• Barb Size 3/4" OD: 0.67 in.
• Barb Size 1" ID: 0.62 in.
• Barb Size 1" OD: 0.86 in.
• Standards: ASTM F2159, ASTM F877, NSF/ANSI 14, NSF/ANSI 61, NSF/ANSI 61 Annex G, CSA B137.5
• Listings: IAPMO, UPC, cNSFuspw
