Mountain Plumbing mt20-6/cpb 45 Degree Shower Arm 6in

Product Description

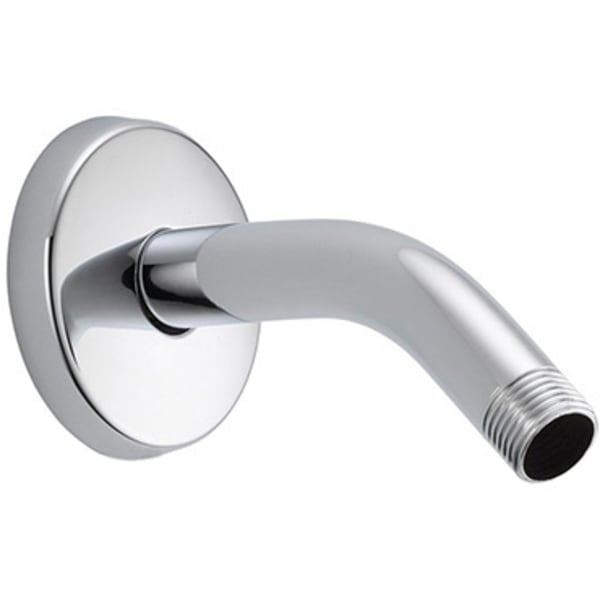

The MOUNTAIN PLUMBING mt20-6/cpb is a 45-degree bend shower arm designed for wall-mount installation in residential shower systems. Built from solid brass throughout, this arm provides a sturdy, corrosion-resistant connection between the wall supply stub-out and a showerhead. It measures 6 inches in arm length with a 1 inch diameter profile and terminates in standard 1/2 inch NPT threads on both ends. The polished chrome finish delivers a clean, reflective surface suited to modern and transitional bath designs. Licensed plumbers and experienced installers are the typical trades for this fitting.

This shower arm is part of the Mountain Re-Vive Collection, a line oriented toward slim, minimalist shower aesthetics. The 45-degree bend geometry directs the showerhead at a downward angle from the wall, positioning the spray point forward and away from the wall surface. It is intended for standard residential shower enclosures where a wall-mount stub-out with 1/2 inch NPT threading is already roughed in. The 6-inch arm length suits typical stud-to-showerhead spacing in new construction and retrofit applications alike.

Key Features

• Solid brass construction for long-term corrosion resistance in wet environments
• 45-degree bend profile positions the showerhead forward and angled downward from the wall
• 6-inch arm length fits standard residential wall rough-in configurations
• 1/2 inch NPT threading on both ends for compatibility with common supply stubs and showerhead inlets
• 1-inch diameter arm profile for a low-profile, streamlined appearance
• Polished chrome finish for durability and ease of cleaning

Compatibility

Designed as an OEM-style wall-mount shower arm for residential shower systems with a standard 1/2 inch NPT wall supply stub-out. Part of the Mountain Re-Vive Collection and compatible with showerheads using 1/2 inch NPT inlet connections.

Installation Notes

Installation is typically performed by a licensed plumber. Shut off the water supply to the shower before removing any existing arm or fitting. Apply thread sealant tape to the NPT threads before threading the arm into the wall nipple and showerhead — do not overtighten, as brass fittings can crack under excessive torque. Verify the connection is leak-free before closing up any access panels or completing finish work.

Technical Specifications

• Arm Length: 6 inches
• Arm Diameter: 1 inch
• Thread Size: 1/2 inch NPT
• Bend Type: 45 degrees
• Mount Type: Wall Mount
• Arm Material: Solid Brass
• Finish: Polished Chrome
• Origin: Import

Standard Information

• Brand: MOUNTAIN PLUMBING
• Manufacturer Part Number: mt20-6/cpb
