Motors and Armatures toc12.5 Run Capacitor 12.5 Mfd 370V

Product Description

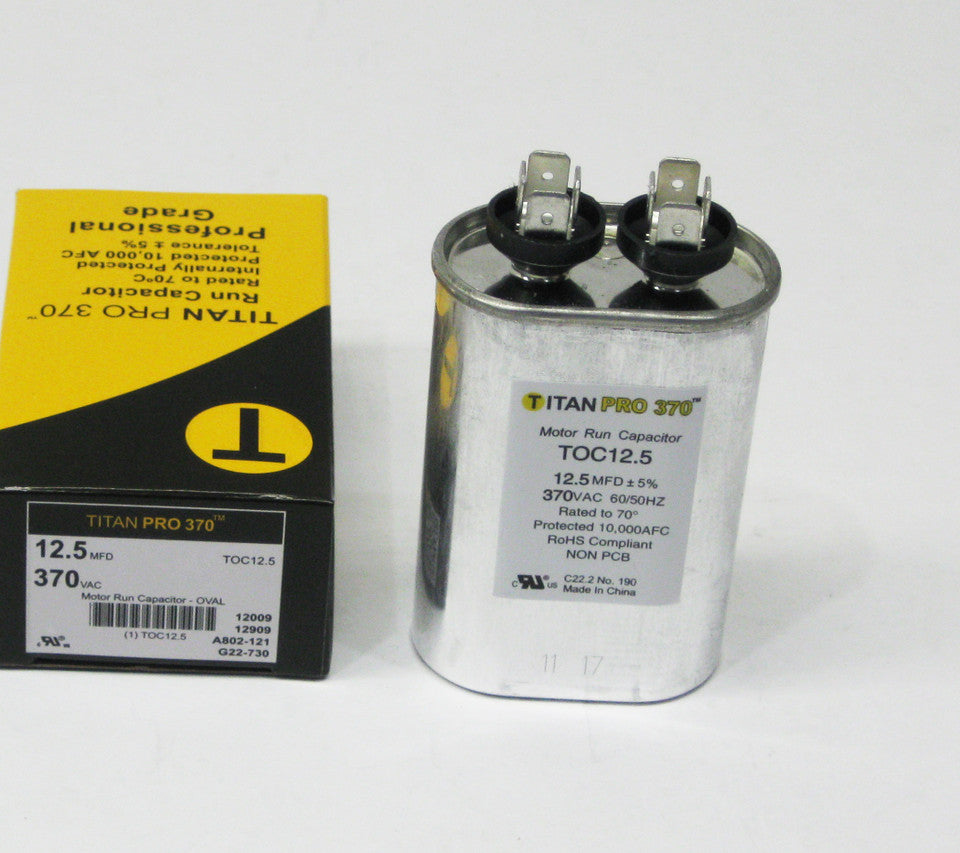

The MOTORS AND ARMATURES toc12.5 is a single-phase oval motor run capacitor rated at 12.5 microfarads (MFD) and 370 volts, designed for continuous-duty operation in HVAC equipment. Constructed with high-grade metallized polypropylene film and proprietary Epoxidized Soybean Oil (ESO) fill, this capacitor is built for long service life. It is rated to 158 degrees F and protected to 10,000 AFC. Heat tolerance has been validated through testing to 60,000 hours of run time. The unit is non-PCB and meets UL 810 safety standards. HVAC technicians use this capacitor as a start or run component in blower motors, condenser fan motors, and compressors.

This capacitor is suited for residential and light commercial HVAC systems where a 12.5 MFD, 370-volt oval-style run capacitor is required. Its compact oval form factor fits standard capacitor brackets and enclosures found in split-system condensers, air handlers, and package units. The 1/4-inch male blade terminals allow for straightforward wiring to motor leads. HVAC technicians performing seasonal maintenance, motor replacements, or capacitor upgrades will find this a direct-fit option for same-rated applications.

Key Features

• Rated 12.5 MFD at 370 volts for precise motor run support
• Metallized polypropylene film construction with ESO dielectric fill for extended service life
• Tested to 60,000 hours of continuous run time
• Rated to 158 degrees F with 10,000 AFC protection
• Two tri-blade terminals with 1/4-inch male connectors for secure wiring
• Meets UL 810 safety standards; non-PCB construction

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC systems requiring a single-phase, 12.5 MFD, 370-volt oval motor run capacitor.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the unit before removing or installing any capacitor, as run capacitors retain a charge even after power is cut — discharge the capacitor safely before handling. Verify that the replacement capacitor matches the MFD rating and voltage rating of the original unit; voltage ratings may be equal to or higher than the OEM specification. Secure the capacitor in its bracket and confirm all terminal connections are tight before restoring power.

Technical Specifications

• Capacitance: 12.5 MFD (microfarads)
• Voltage Rating: 370 volts
• Shape: Oval
• Terminal Type: 1/4-inch male blade, tri-blade configuration
• Maximum Temperature Rating: 158 degrees F
• AFC Protection: 10,000 AFC
• Tested Run Time: 60,000 hours
• Dielectric Material: Metallized polypropylene film with Epoxidized Soybean Oil (ESO)
• PCB Content: Non-PCB
• Safety Certification: UL 810
• Depth: 1.36 inches
• Width: 2.13 inches
• Height: 2.95 inches (add 0.5 inches for terminal length)

Standard Information

• Brand: MOTORS AND ARMATURES
• Manufacturer Part Number: toc12.5
