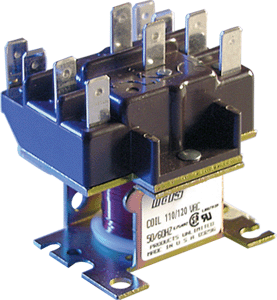

Motors and Armatures 90341 General Purpose Switching Relays 110/120V 2P Power/Power Series 903

Product Description

The Motors and Armatures 90341 is a general purpose switching relay designed for use in air conditioning systems. This 2-pole relay operates at a voltage range of 110 to 120 volts and is suitable for both residential and commercial HVAC applications.

• Compatible with Honeywell and White-Rodgers/RBM relays
• Features double quick-connect terminals for easy installation
• UL and CSA listed for safety and compliance

Product Highlights

The Motors and Armatures 90341 relay provides reliable performance and easy integration into existing systems. It is ideal for HVAC professionals looking for quality components.

Product Information

Standard Information

• Brand: Motors and Armatures
• MPN: 90341

Technical Specifications

• Voltage: 110/120V
• Series-Brand: MARS
• Vendor: Motors and Armatures
• Electrical Rating: 24 to 240 VAC @ 50/60Hz; 21.5VA maximum inrush; 9.5VA maximum sealed
• Dimensions: 2.13 x 1.88 x 2.25 inches
• Certification: UL Listed
• Country of Manufacture: Made in USA
