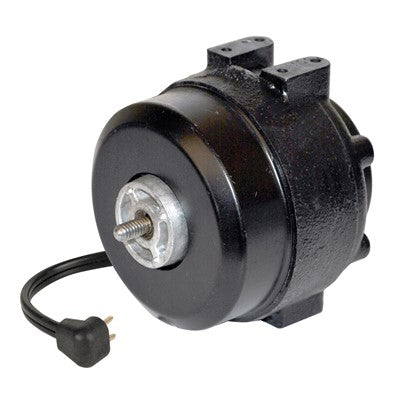

Motors and Armatures 5822 Unit Bearing Motor 16W 230V

Product Description

The Motors and Armatures 5822 is a unit bearing motor designed to deliver reliable performance for various applications. This motor operates on 230V with a power of 16W, making it suitable for fan duty and continuous use. Key features include:

• Single-phase shaded pole unit bearing motor
• All-angle mount for flexible installation
• Automatic reset overload protection for safety

Product Highlights

This robust motor is made from cast iron and designed for air-over applications. It is impedance protected to enhance durability and uses class B insulation to withstand heat.

Product Information

Standard Information

• Voltage: 230V
• Power: 16W

Technical Specifications

• Current: 0.50A
• Speed: 1550 RPM
• Frame Size: 51 Frame
• Shaft Type: 1/4-20 threaded shaft
• Weight: 8 lbs
• Frequency: 50/60Hz
• Mounting: Dual pad mounting with lyall plug
• Included: Vibration dampener, speed nut, screws
