MOTORS AND ARMATURES 10458 1/3-1/6hp Condenser Fan Motor 208-230v 1075rpm Wiz

Product Description

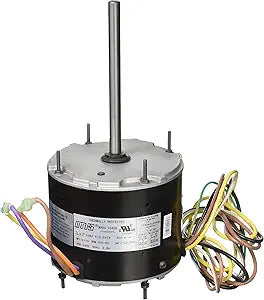

The Mars Motors & Armatures 10458 is a PSC condenser fan motor with a horsepower range of 1/6 to 1/3 HP. It operates at 208-230V at a speed of 1075 RPM. This single-phase motor is designed for versatility with a drip-proof enclosure and a NEMA frame size of forty-eight.

• Features Rheem mounting holes with screws included
• Offers thru bolt or band mounting alternatives
• Equipped with a water slinger on the shaft

Product Highlights

This motor is suitable for all-angle mounting and has reversible rotation capabilities, making it ideal for various applications.

Product Information

Standard Information

• Brand: Motors & Armatures
• Model: 10458

Technical Specifications

• Model Name: 1/3-1/6HP 208-230V 1075RPM WIZ
• Speed: 1075 RPM
• Voltage: 208 to 230V
• NEMA Frame Size: 48
• Motor Type: PSC
• Enclosure: Drip Proof
• Horse Power: 1/6 to 1/3 HP
• Hertz: 60 Hz
• Phase: 1
• Thermal Protection: Auto
• Ampere Rating: 2.8A
• Rotation: Reversible
• Ambient Temperature: 60 Deg C
• Insulation Class: Class B
• Shaft Diameter: 1/2 inch
• Shaft Length: 6.5 inches
• Overall Motor Length: 14.7 inches
• Bearing: Ball
• Capacitor Rating: 7.5/370 MFD
• Standards/Approvals: cUL Listed
• Capacitor: 7.5 MFD/370V
