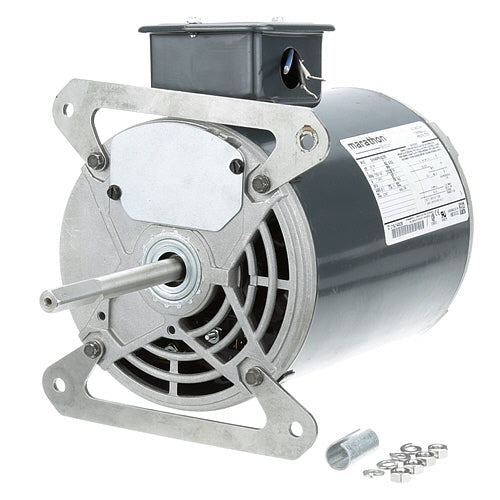

Motor Kit 115V 1/3-.09HP 1P Replacement 4440297 for Southbend

Product Description

This item for Southbend 4440297 is a motor kit operating at one hundred fifteen volts, featuring a power range of one third to point zero nine horsepower. This motor operates on one phase, making it suitable for various applications.

• Voltage: 115V, dual frequency of 50/60HZ
• Power ratings of point five and point two five HP
• Includes a shaft bushing adaptor for easy installation

Product Highlights

This motor kit is designed for use in multiple Southbend oven series including V, VS, X, XE, XS, and XSE. The kit includes a shaft bushing adaptor, enhancing compatibility with existing setups.

Product Information

Standard Information

• Weight: 28 lbs
• Dimensions: Length twelve inches, Width eight point six inches, Height ten inches

Technical Specifications

• RPM: 1725/1140
• Amperage: 7.2/4.5 AMP
• Rotation: Clockwise
• Frame Size: 56Z
• Speed: Two-speed operation
• Shaft Size: 1/2 x 4-1/2 inches with two flats
• Blower Wheel Compatibility: Southbend blower wheel #26-4052 (10 inches diameter)
