MOTOR 2-SPEED 115V (1/2-1/4HP) 153565 for Duke DUK153565

Product Description

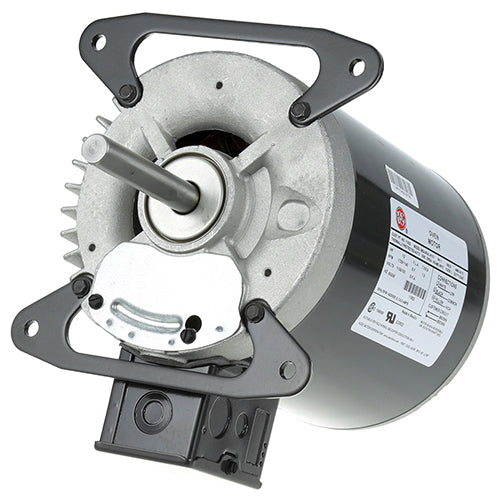

This item for Duke MPN 153565 is a 2-speed motor designed for various applications. It operates at 115 volts and has a power output of one-half to one-quarter horsepower. The motor offers two RPM settings at seventeen hundred twenty-five and eleven hundred forty. It is suitable for installations that require reliable performance.

• Compatible with blower wheels of nine and seven-eighths inches in diameter.
• Features clockwise rotation and operates at 50/60Hz.
• User-friendly installation with a shaft measuring five-eighths by three and one-half inches.

Product Highlights

This motor is ideal for heating, ventilation, and air conditioning systems where consistent airflow is necessary.

Product Information

Standard Information

• Weight: 6.2578 lbs

Technical Specifications

• Voltage: 115V
• Horsepower: 1/2-1/4 HP
• RPM Options: 1725/1140
• Amperage: 8.1-5.0 A
• Rotation: CW
• SHAFT: 5/8 X 3-1/2 inches
• Blower Wheel Diameter: 9-7/8 inches
• Blower Wheel Depth: 2-1/2 inches
