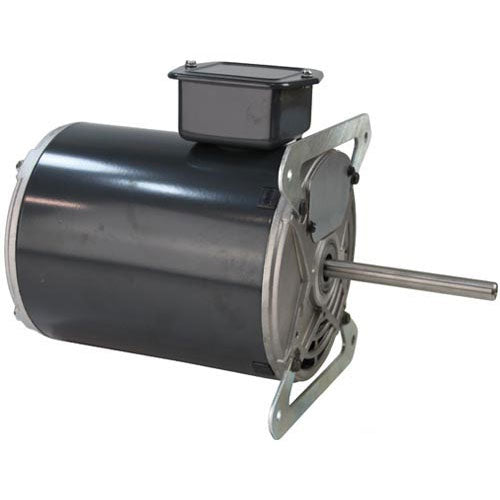

MOTOR 115V .5/.14HP 1725/1140 for Southbend 1175567

Product Description

This item for Southbend MPN 1175567 is a motor designed for commercial kitchen equipment. It operates at 115 volts with a power range of .5 to .14 horsepower. The motor features dual speed options for versatile operation.

• Power: 115V, .5/.14 HP
• Speeds: 1725/1140 RPM
• Design: CW rotation from the rear

Product Highlights

This motor is compatible with several Southbend oven series, including models 300, 400, B, BBB, GB, GS, EH, P, and SLGS. It has a 56Z frame size and is built for durability and heavy use in commercial settings.

Product Information

Standard Information

• Voltage: 115V
• Frequency: 50/60Hz

Technical Specifications

• Speed: 1725/1140 RPM
• Amps: 7.2/4.5 AMP
• Shaft: 1/2 x 4-1/2 inches with 2 flats
• Rotation: CW from rear
• Frame Size: 56Z
• Wiring: White common, black power to fan switch - high, red power to fan switch - low
