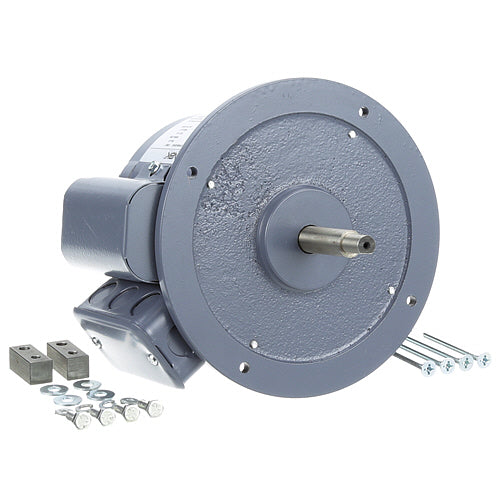

MOTOR 115V 1/4HP 8400119000 for Jade Range JAD8400119000

Product Description

This item for Jade Range is the MPN 8400119000, a motor designed for various applications. It operates on 115 volts and has a speed of 1725 RPM. This motor features a quarter-horsepower rating and a 56YZ frame. Its shaft measures three inches in length, turned down to half an inch with one flat side. The motor includes four mounting holes for secure installation.

• Power: 1/4 HP
• Frame Size: 56YZ
• Shaft Length: 3-1/8 inches

Product Highlights

Product Information

Standard Information

• Weight: 19.1 lbs
• Dimensions: 12.5 x 12 x 14.5 inches

Technical Specifications

• Voltage: 115 V
• RPM: 1725
• Horsepower: 1/4 HP
• Mounting Holes: 4
• Shaft Diameter: 1/2 inch
• Threaded Hole: 1/4-20
• Center Distance: 5-1/16 inches
