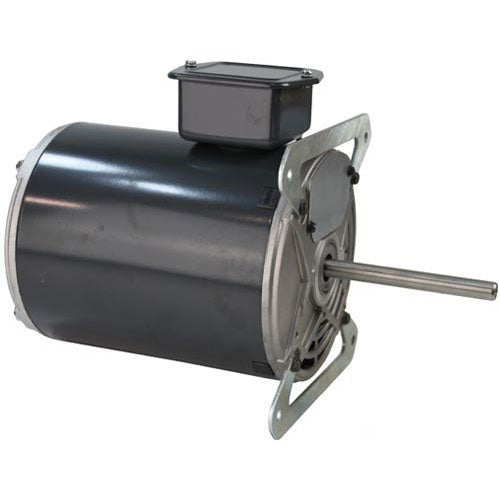

MOTOR 115V 0.5/0.14HP 1725/1140 for Southbend SOU1177452

Product Description

This item for Southbend SOU1177452 is a reliable motor designed for various oven applications. It operates at a voltage of 115V and offers two horsepower options, 0.5 and 0.14 HP, making it suitable for different operational demands.

• Two-speed motor with a speed of 1725/1140 RPM.
• Compatible with Southbend oven models series 300, 400, B, BBB, GB, GS, EH, P, SLGS.
• Easy wiring instructions for simplified installation.

Product Highlights

This motor's compact size and dual-speed capability make it an essential component for efficient oven operation.

Product Information

Standard Information

• Voltage: 115V
• Horsepower: 0.5/0.14 HP

Technical Specifications

• RPM: 1725/1140
• Frame: 56Z
• Amperage: 7.2/4.5 AMP
• Rotation: CW from the rear
• Shaft: 1/2 x 4-1/2 inches with 2 flats
• Wiring: White common, Black power to fan switch (high), Red power to fan switch (low)
• Centrifugal switch: Wiring instructions provided for ovens without centrifugal switch
• Mounting: Designed for easy installation in Southbend ovens
