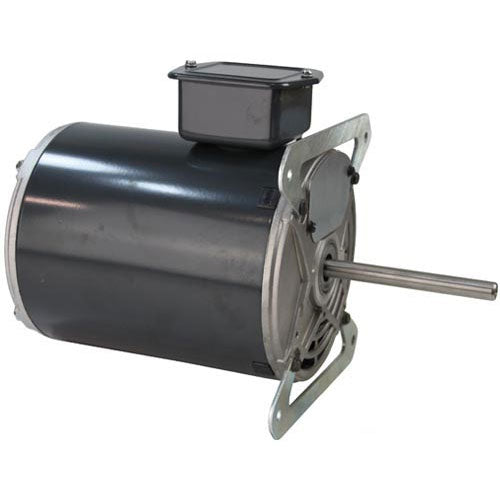

MOTOR 115V 0.5/0.14HP 1725/1140 for Southbend 1194780 OS MAKE LIST

Product Description

This item for Southbend 1194780 OS MAKE LIST is a motor designed for various applications.

• 115V operation with dual horsepower specifications
• Two-speed capabilities for versatile performance
• Compact dimensions suitable for various setups

Product Highlights

This Southbend motor is suitable for ovens in the 300, 400, B, BBB, GB, GS, EH, P, and SLGS series. It runs on a voltage of 115V at speeds of 1725/1140 RPM.

Product Information

Standard Information

• Power Supply: 115V
• Horsepower: 0.5/0.14 HP

Technical Specifications

• Rotational Speed: 1725/1140 RPM
• Frame Size: 56Z
• Current: 7.2/4.5 AMP
• Motor Rotation: CW rotation from the rear
• Shaft Dimensions: 1/2 inches x 4-1/2 inches with 2 flats
• Wire Color Coding: White common, Black power to fan switch - high, Red power to fan switch - low
• Application: Use centrifugal switch if applicable
• Notes: Wiring adjustments may be needed for single speed use
