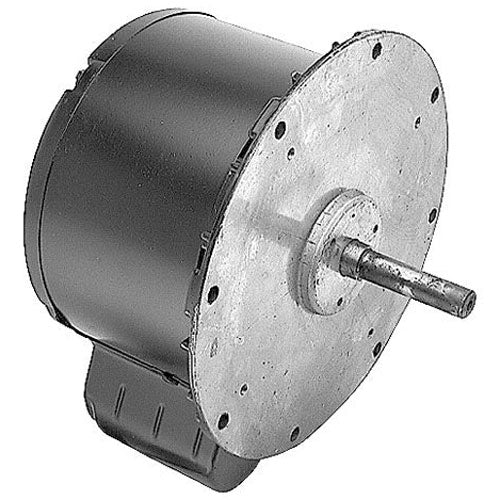

MOTOR 115/230V 1/2HP P8110-16 for Anets P8110-16

Product Description

This item for Anets P8110-16 is a motor designed to operate on both one hundred fifteen volts and two hundred thirty volts, featuring a one-half horsepower capacity. It runs at one thousand seven hundred twenty-five RPM, suitable for various applications.

• Power specifications: 115/230V
• Shaft dimensions: 5/8 x 2-7/8 inches
• Rotation: Clockwise

Product Highlights

This motor is engineered for versatility, providing reliable performance in demanding conditions.

Product Information

Standard Information

• Weight: 28.1 lbs
• Dimensions: 19 x 12 x 10.5 inches

Technical Specifications

• MPN: P8110-16
• Power: 1/2 HP
• Phase: 1PH
• Current: 8.0/4.0A
• Propulsion type: CW Rotation
• Face diameter: Approx. 9-1/2 inches
• Mount centers: 8-3/4 inches
• High voltage wiring: Connect black to one side of the line and yellow to the other side; tie red and white together.
• Low voltage wiring: Connect black and red to one side of the line; connect yellow to the other side; tie blue and white together.
