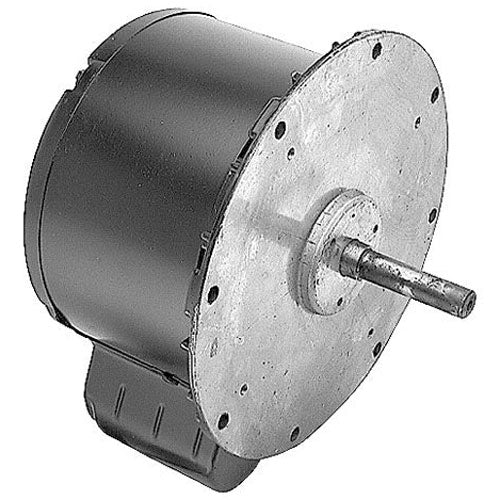

MOTOR 115/230V 1/2HP 68-1008 for Vulcan Hart 411205-7

Product Description

This item for Vulcan Hart MPN 411205-7 is a motor designed for various applications. With a voltage rating of one hundred fifteen or two hundred thirty volts, it provides reliable power at half a horsepower. This motor operates at a speed of one thousand seven hundred twenty-five RPM and is suitable for one-phase systems.

• Voltage: 115V or 230V
• Power: 1/2HP
• Rotation: Clockwise

Product Highlights

This motor is efficient and built for durability. It features a shaft size of five-eighths by two and seven-eighths inches. The approximate face diameter is nine and one-half inches, with mount centers at eight and three-quarters inches.

Product Information

Standard Information

• Power Specifications: 1/2HP
• Speed: 1725 RPM

Technical Specifications

• Voltage: 115/230V
• Current: 8.0/4.0A
• Shaft Size: 5/8 x 2-7/8 inches
• Mount Centers: 8-3/4 inches
• Face Diameter: 9-1/2 inches
• Rotation: Clockwise
• Suggested Alternatives: M123, # 68-1009
• Wiring Information: High voltage and low voltage connections available
