Product Description

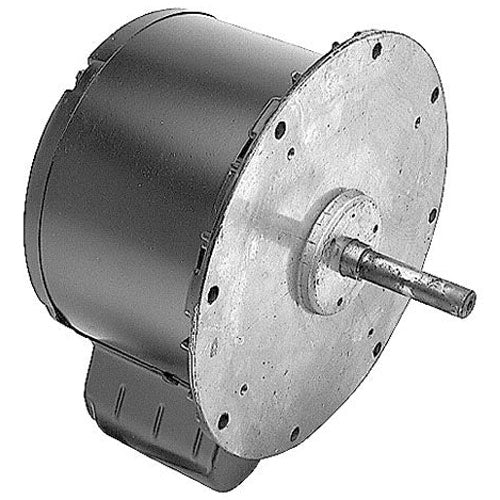

This item for Hobart 119720-G1 is a motor designed to operate at 115 or 230 volts with a power output of one half horsepower. Operating at a speed of one thousand seven hundred twenty-five RPM, this motor features a standard rotation configuration.
- Voltage: 115/230V
- Power: 1/2 HP
- Rotation: Clockwise
Product Highlights
This motor is suitable for a variety of applications where robust and reliable performance is needed.
Product Information
Standard Information
Technical Specifications
-
Weight: 28.1 lbs
-
Dimensions: 19 inches (length) x 12 inches (width) x 10.5 inches (height)
-
Current Ratings: 8.0/4.0A
-
Mounting Centers: 8-3/4 inches
-
Shaft Size: 5/8 inch x 2-7/8 inches
-
Face Diameter: 9-1/2 inches
-
Wiring Instructions: Low Voltage (115V) connect one side of line to black and red; other side to yellow. High Voltage (230V) connect one side to black and other side to yellow.
