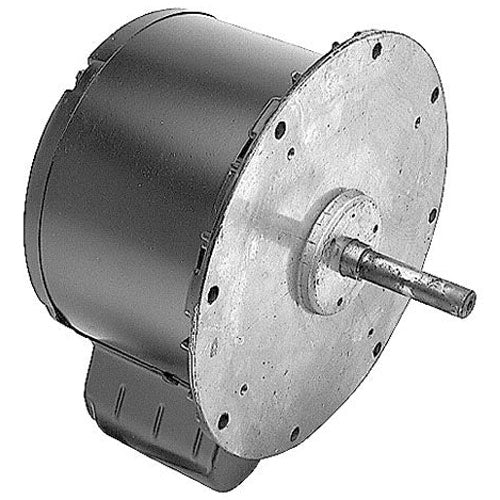

MOTOR 115/230V, 1/2HP, 1P 1725 for Vulcan Hart 111205-5

Product Description

This item for Vulcan Hart MPN 111205-5 is a motor designed for use in a variety of applications. It operates on both 115 and 230 volts, providing flexibility in installation. The motor has a power rating of half a horsepower, making it suitable for different tasks that require reliable performance.

• Voltage: 115/230 Volts
• Horsepower: 1/2HP
• Speed: 1725 RPM

Product Highlights

This motor is ideal for HVAC systems and other commercial equipment.

Product Information

Standard Information

• MPN: 111205-5
• Hazardous: No

Technical Specifications

• Dimensions: 19 inches Length x 12 inches Width x 10.5 inches Height
• Weight: 28.1 lbs
• Amperage: 8.0/4.0A
• Rotation: CW (Clockwise)
• Shaft Size: 5/8 x 2-7/8 inches
• Face Diameter: Approx. 9-1/2 inches
• Mount Centers: 8-3/4 inches
• Wiring Instructions: Low Voltage (115V): Connect one side of line to black and red. Other side to yellow. Tie blue and white together. High Voltage (230V): Connect one side of line to black, other to yellow. Tie red and white together.
