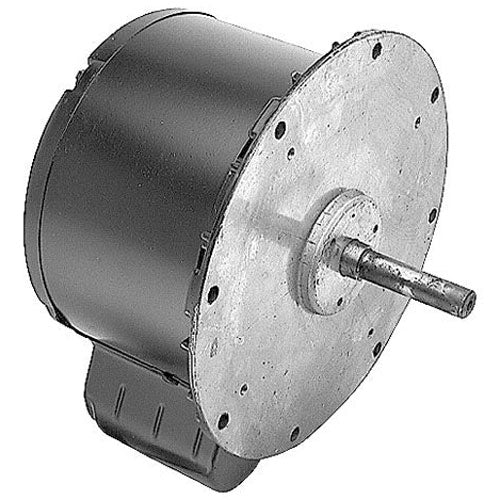

MOTOR 115/230V 1/2HP 1725 for Vulcan Hart VH18386

Product Description

This item for Vulcan Hart VH18386 is a motor designed for power efficiency. It operates on either one hundred fifteen or two hundred thirty volts and provides half a horsepower. The motor runs at one thousand seven hundred twenty-five revolutions per minute and is suitable for various applications requiring reliable performance.

• Voltage: 115/230V
• Power: 1/2HP
• RPM: 1725

Product Highlights

This motor features clockwise rotation and has a shaft size of five eighths by two and seven eighths inches. It also has a diameter face of approximately nine and a half inches with mounting centers measuring eight and three quarters inches.

Product Information

Standard Information

• Weight: 28.1 lbs
• Dimensions (L x W x H): 19 x 12 x 10.5 inches

Technical Specifications

• Motor Type: Single Phase
• Current Draw (115V): 8.0A
• Current Draw (230V): 4.0A
• Shaft Size: 5/8 x 2-7/8 inches
• Face Diameter: 9-1/2 inches
• Mounting Centers: 8-3/4 inches
