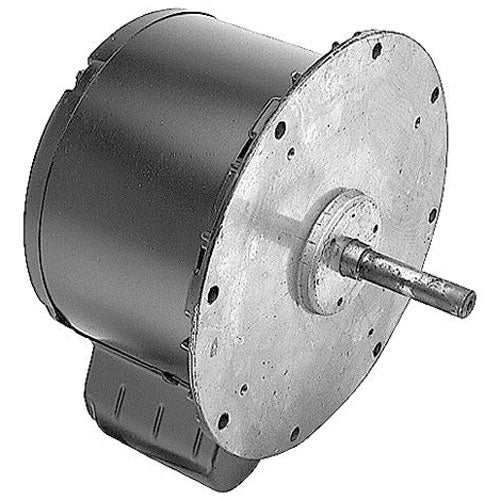

MOTOR 115/230V 1/2HP 1725 for Vulcan Hart VH111205-1

Product Description

This item for Vulcan Hart VH111205-1 is a reliable motor designed for various applications. It operates at both one hundred fifteen and two hundred thirty volts, with a power output of one half horsepower at a speed of one thousand seven hundred twenty-five RPM.

• Suitable for CW rotation.
• Features a shaft measuring five eighths by two and seven eighths inches.
• Mounting centers of eight and three quarters inches.

Product Highlights

This motor fits several equipment types and effectively meets energy requirements.

Product Information

Standard Information

• Voltage: 115/230V
• Horsepower: 1/2HP

Technical Specifications

• RPM: 1725
• Amperage: 8.0/4.0A
• Rotation: CW
• Shaft Size: 5/8 x 2-7/8 inches
• Diameter Face: Approx. 9-1/2 inches
• Mount Centers: 8-3/4 inches
• Wiring (115V): Connect black to one side of line, red to the other side, tie blue and white together.
• Wiring (230V): Connect black to one side of line, yellow to the other side, tie red and white together.
