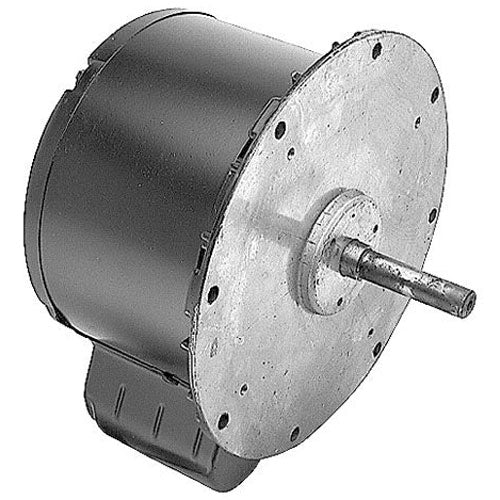

MOTOR 115/230V 1/2HP 1725 for Vulcan Hart 18386

Product Description

This item for Vulcan Hart 18386 is a reliable motor with a voltage range of 115 to 230 volts and a power rating of one half horsepower. This motor operates at a speed of 1725 RPM and is designed for one phase systems.

• Operating Voltage: 115/230V
• Power Rating: 1/2 HP
• Speed: 1725 RPM

Product Highlights

This durable motor is suitable for various applications in commercial and industrial settings. It features a clockwise rotation and a shaft size of five eighths by two and seven eighths inches. It is important to note the specific wiring requirements for both low and high voltage connections.

Product Information

Standard Information

• Weight: 28.1 lbs
• Dimensions: 19 inches (Length) x 12 inches (Width) x 10.5 inches (Height)

Technical Specifications

• HP: 1/2
• RPM: 1725
• Rotation: CW
• Current: 8.0/4.0A
• Shaft Size: 5/8 X 2-7/8
• Face Diameter: Approx 9-1/2 inches
• Mount Centers: 8-3/4 inches
