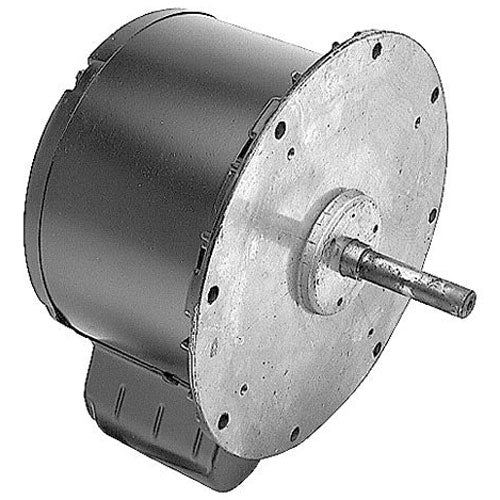

MOTOR 115/230V 1/2HP 1725 for Vulcan Hart 111205-14

Product Description

This item for Vulcan Hart with MPN 111205-14 is a motor designed for various applications. This motor operates at a voltage of one hundred fifteen or two hundred thirty volts and has a power rating of one half horsepower. It runs at a speed of one thousand seven hundred twenty-five RPM, making it suitable for equipment needing efficient performance.

• Voltage Rating: 115/230V
• Horsepower: 1/2HP
• Speed: 1725 RPM

Product Highlights

This motor supports clockwise rotation and features a shaft size of five eighths inches by two and seven eighths inches. With an approximate diameter face of nine and a half inches and mount centers of eight and three quarter inches, it is suitable for several mounting configurations.

Product Information

Standard Information

• Weight: 28.1
• Length: 19
• Width: 12
• Height: 10.5

Technical Specifications

• Wiring Configuration: Low Voltage (115V) - Connect one side to Black and Red, other to Yellow. Tie Blue and White together.
• High Voltage (230V) Wiring: Connect one side to Black, other to Yellow. Tie Red and White together.
• Rotation: CW Rotation
