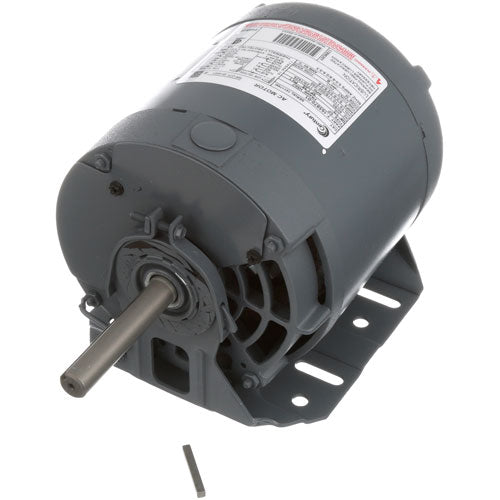

MOTOR 100-115/200-230V 1/3HP BL5282 for Blodgett BLOBL5282

Product Description

This item for Blodgett BL5282 is a motor designed for oven applications. This motor operates at voltages of one hundred to one hundred fifteen and two hundred to two hundred thirty volts with a power rating of one-third horse power.

• Compatible with various Blodgett oven models.
• Features a dual-speed option for enhanced performance.
• Can be installed easily with guidance from included instructions.

Product Highlights

This motor is suitable for use in DFG 100, DFG 200, and DFG 300 oven models. It includes a feature to change rotation direction by simply interchanging the red and black leads. Motor comes with detailed installation instructions to assist with the setup process.

Product Information

Standard Information

• Weight: 23 lbs
• Length: 12.875 inches
• Width: 10 inches
• Height: 10.5 inches

Technical Specifications

• MPN: BL5282
• Power: 1/3 HP
• Voltage: 100-115/200-230V
• Speed: 1725/1425 RPM
• Amperage: 5.1-5.2/2.6-2.6A
• Rotation: CW rotation looking from the shaft side
• Additional Notes: For some EZE units, a dual speed motor is required
