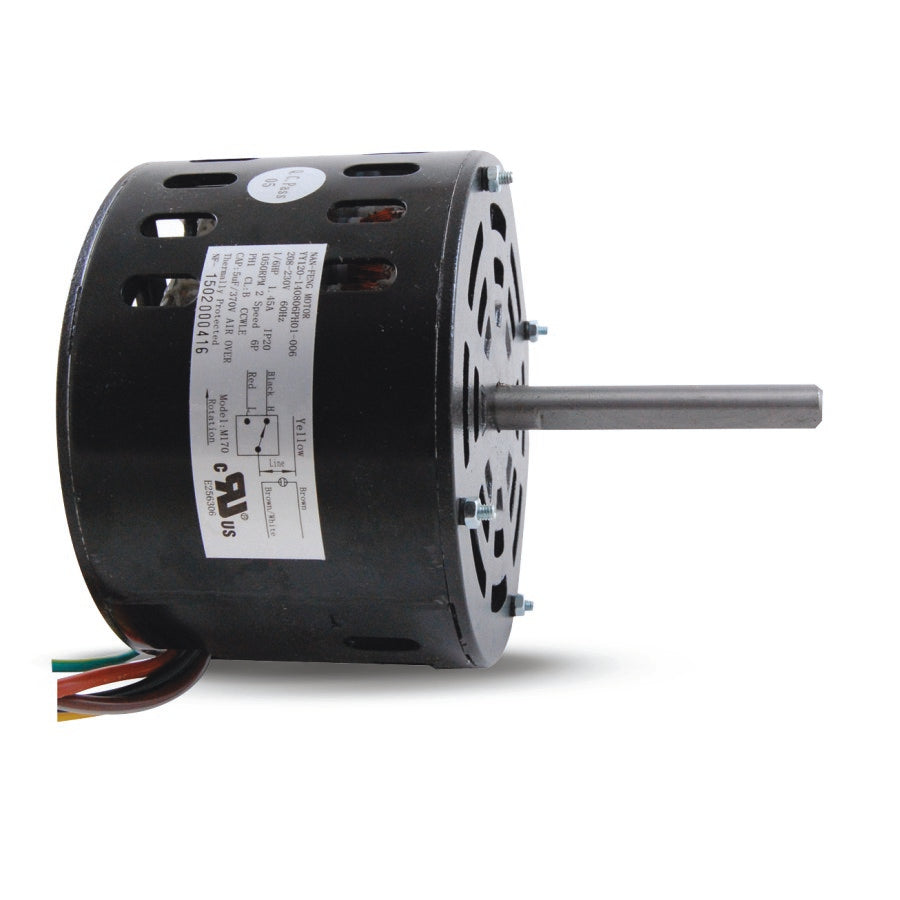

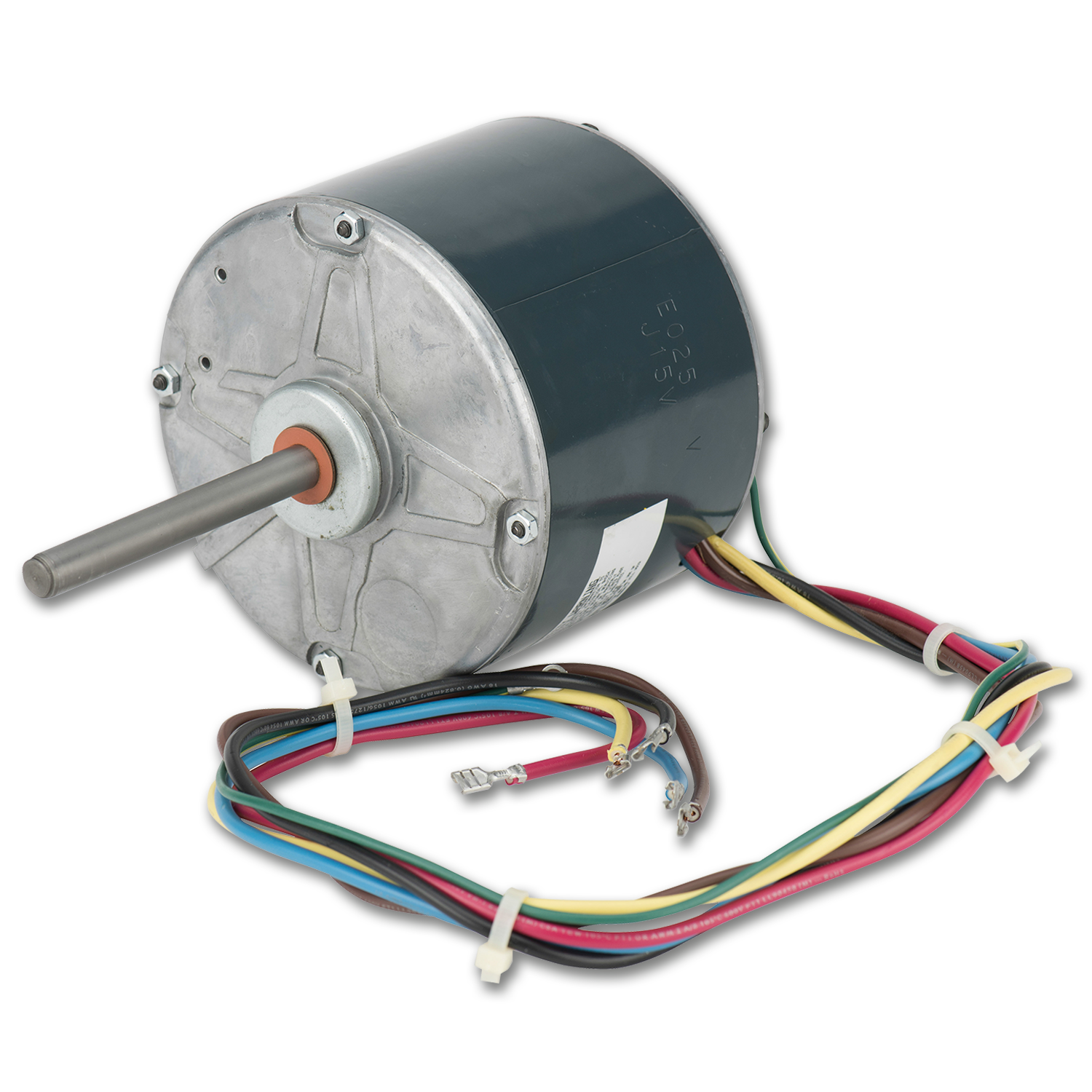

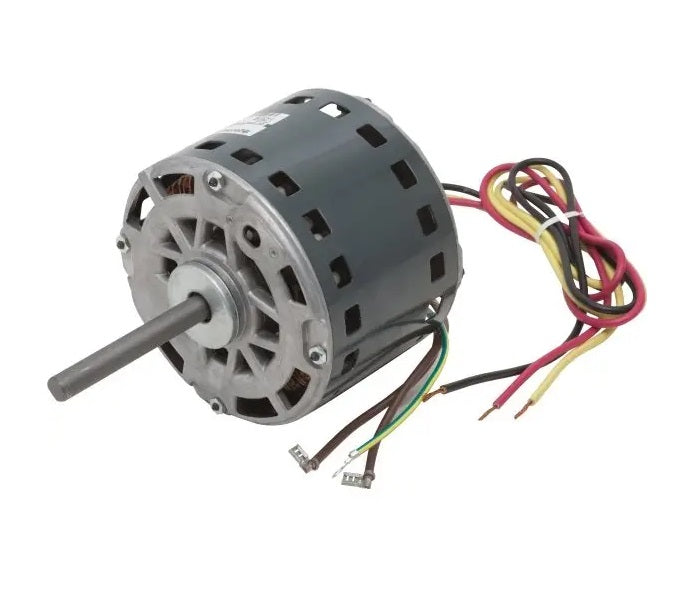

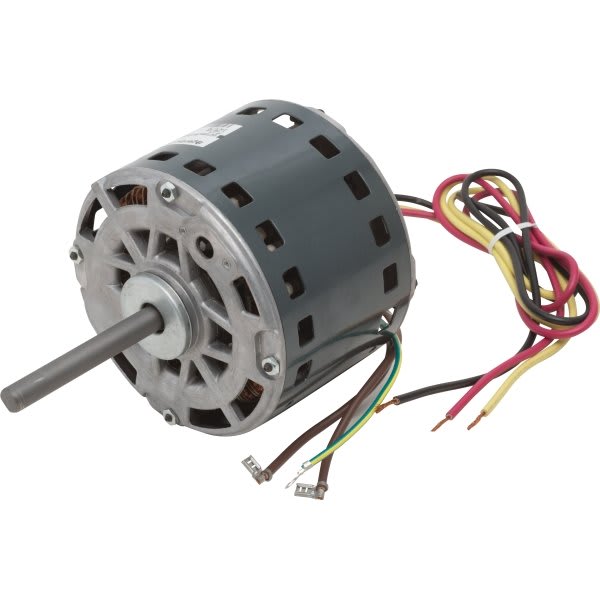

First Company M170 Motor 1/6HP

FIRST COMPANY
SKU: M170
Availability: In Stock

Ships same day if ordered by 12 pm

Same-day delivery
Greater Chicago, IL area
If ordered prior to 4pm CT (Mon-Fri)
$359.05
$359.05
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The First Company M170 motor is a 1/6 HP motor designed for HVAC systems, including air handlers, fan coils, and furnaces. It features two-speed functionality to adapt to different heating and cooling demands. It delivers consistent air circulation and temperature regulation. The motor operates at 208/230V and 1050 RPM.

  • Two-speed functionality for adjustable airflow.
  • Designed for consistent air circulation.
  • Optimizes overall energy efficiency.

Product Highlights

The First Company M170 motor is ideal for maintaining comfort and efficiency in HVAC systems.

Product Information

Standard Information

  • Brand: FIRST COMPANY
  • Manufacturer Part Number: M170
  • Country of Origin: USA
Technical Specifications
Cycle/Hertz
60 Hz
Height
7
Insulation Class
B
Motor HP
1/6 HP
Number of Speeds
2 (Two)
Phase
Single
Prop 65
Yes
Rotation
Clockwise (CW)
RPM
1050
Voltage
240 VAC
Width
7
Country of Origin
USA
Amperage
1.60 amp
Frame
48
Horsepower
0.17 hp
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Bracket
Name Plate RPM
1050
Number of Phases
1
Shaft Diameter
0.5 in.
Shaft Length
3.5 in.
Type
Blower Motor
Diameter
5-5/8"
Capacitor
5MFD, 370V
Rotation Code
CWSE
Speed Code
2
Voltage Code
208/230V
Amps
1.6A
Volts
208/230
