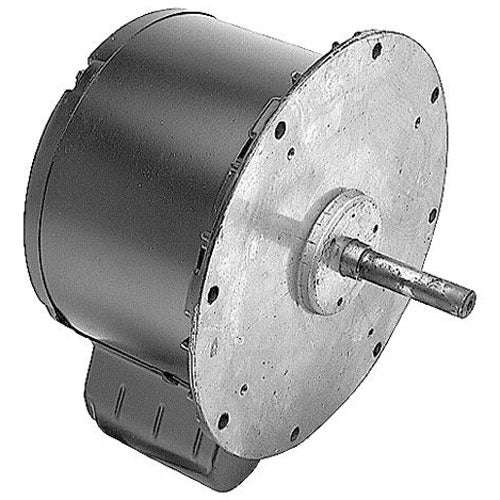

MOTOR 1/2HP 115/230V VH411205-00001 for Vulcan Hart

Product Description

This item for Vulcan Hart, MPN VH411205-00001 is a motor designed for various applications. This motor operates at 115/230 volts and has a power rating of one-half horsepower, making it suitable for many HVAC and refrigeration systems.

• Voltage: 115/230V
• Power: 1/2HP
• Rotation: Clockwise

Product Highlights

This motor is essential for cooling and heating applications. It is built for durability and high performance in commercial settings.

Product Information

Standard Information

• Weight: 28.1 lb
• Dimensions: 19 inches length x 12 inches width x 10.5 inches height

Technical Specifications

• Horsepower: 1/2 HP
• RPM: 1725
• Amperage: 8.0/4.0 A
• Shaft Size: 5/8 x 2-7/8 inches
• Face Diameter: Approximately 9-1/2 inches
• Mount Centers: 8-3/4 inches
• Wiring for 115V: Connect one side of line to black and red. Other side to yellow. Tie blue and white together.
• Wiring for 230V: Connect one side of line to black. Other side to yellow. Tie red and white together.
