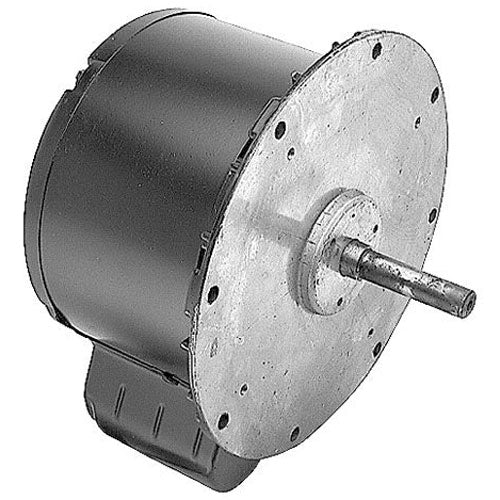

Motor 1/2HP 115/230V 1725 RPM VH111205-7 for Vulcan Hart VH111205-7

Product Description

This item for Vulcan Hart with MPN VH111205-7 is a motor that operates on 115 or 230 volts, providing half a horsepower and speeds of 1725 RPM. This motor is designed for commercial uses where reliable operation is essential.

• Operating Voltage: 115/230V
• Power: 1/2HP
• Rotation: CW rotation with a shaft size of 5/8 inches by 2-7/8 inches

Product Highlights

It features a durable design suitable for heating and cooking equipment, ensuring effective performance in demanding environments.

Product Information

Standard Information

• Weight: 28.1 lbs
• Dimensional Weight: 28.1 lbs

Technical Specifications

• Dimensions:
• Length: 19 inches
• Width: 12 inches
• Height: 10.5 inches
• Wiring:
• Low Voltage (115V): Connect one side of line to black and red. Other side of line to yellow. Tie blue and white together.
• High Voltage (230V): Connect one side of line to black. Other side of line to yellow. Tie red and white together.
• Face Diameter: Approximately 9-1/2 inches
• Mount Centers: 8-3/4 inches
