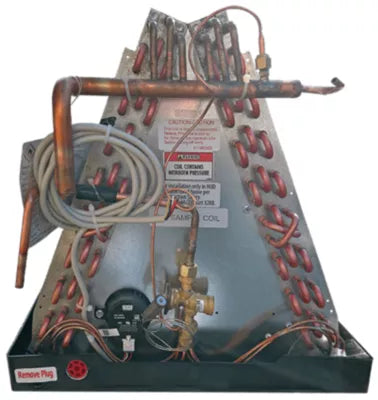

Mortex rpm1824p14a Mobile Home Evaporator Coil

Product Description

The MORTEX rpm1824p14a is an AHRI-rated indoor evaporator coil engineered specifically for manufactured housing applications. Designed to work with R-454B refrigerant, this coil fits within a 14-inch height envelope, making it suitable for the compact air handler spaces common in mobile homes. It ships factory leak-tested to 500 psi and includes a bolt-on check valve TXV, giving technicians confidence in both refrigerant containment and proper metering from the first startup. Licensed HVAC technicians working in manufactured housing HVAC service will find this coil ready for installation in both new and replacement scenarios.

This coil is rated for use in manufactured housing gas and electric furnace systems. It carries AHRI certification for combination system performance when paired with compatible condensing units. Dual drain pan openings add flexibility for left-hand or right-hand condensate line routing. Schrader ports are included on the coil for field pressure testing without additional access fittings. This unit covers a capacity range of 1.5 to 2 tons.

Key Features

• AHRI-rated for manufactured housing indoor coil applications
• Compatible with R-454B refrigerant (A2L designation)
• Bolt-on check valve TXV for accurate refrigerant metering
• Factory leak-tested to 500 psi
• Dual drain pan openings for flexible condensate routing
• Schrader ports included for field pressure testing

Compatibility

Designed for use in new and existing manufactured housing gas and electric furnaces in combination with Rheem, RUUD, and Sure Comfort condensing units.

Installation Notes

Installation should be performed by a licensed HVAC technician familiar with A2L refrigerant handling requirements and applicable local codes. Shut down all power to the air handler and close the refrigerant circuit before opening any connections. Verify that the condensing unit is rated for R-454B before completing the system pairing. Follow all applicable EPA Section 608 and manufacturer guidelines when recovering, charging, or handling A2L refrigerants.

Technical Specifications

• Capacity Range: 1.5 to 2 Ton
• Refrigerant: R-454B
• Height: 14 inches
• TXV Code: P
• Leak Test Pressure: 500 psi
• Rating: AHRI Certified
• Application: Manufactured Housing (Mobile Home)

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: rpm1824p14a
