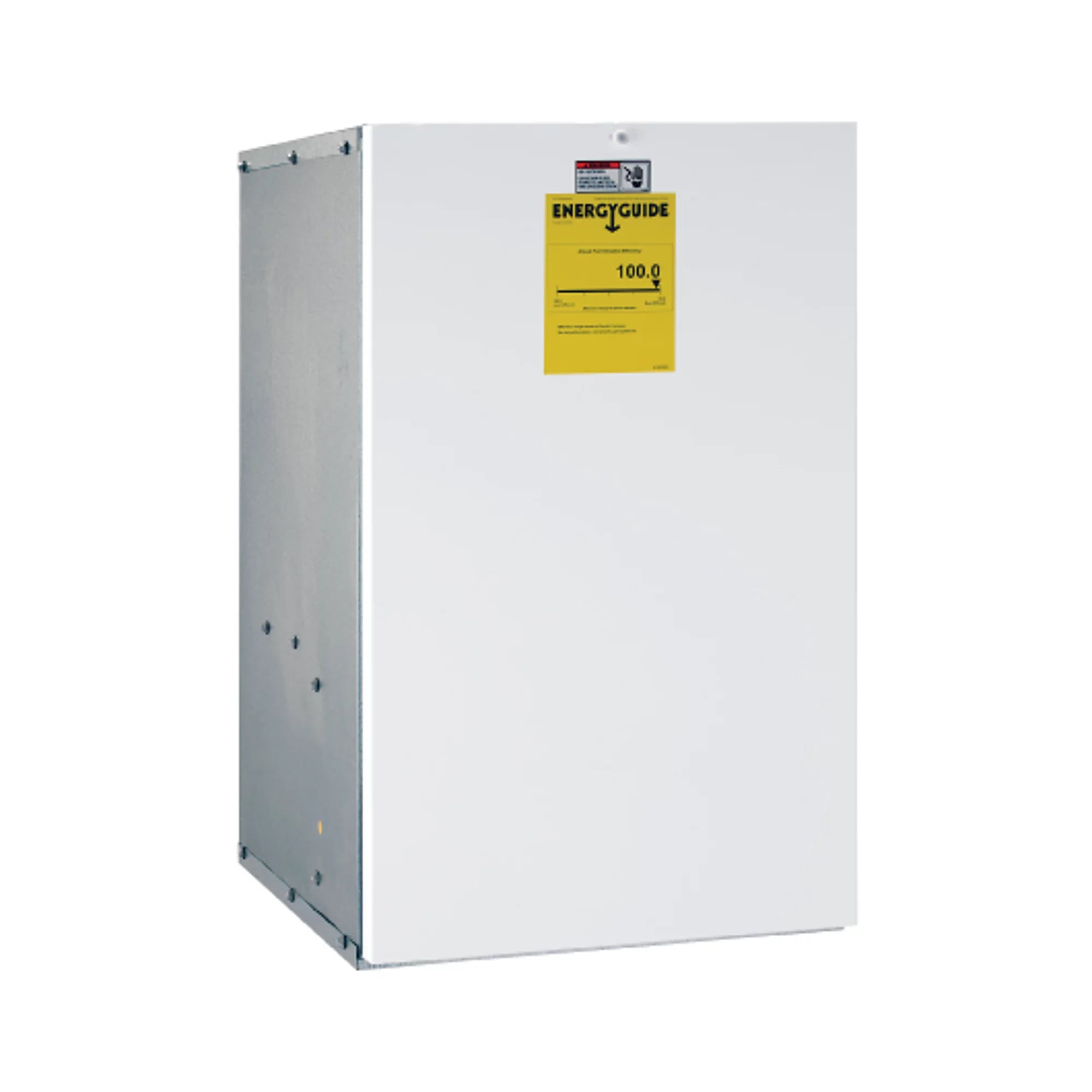

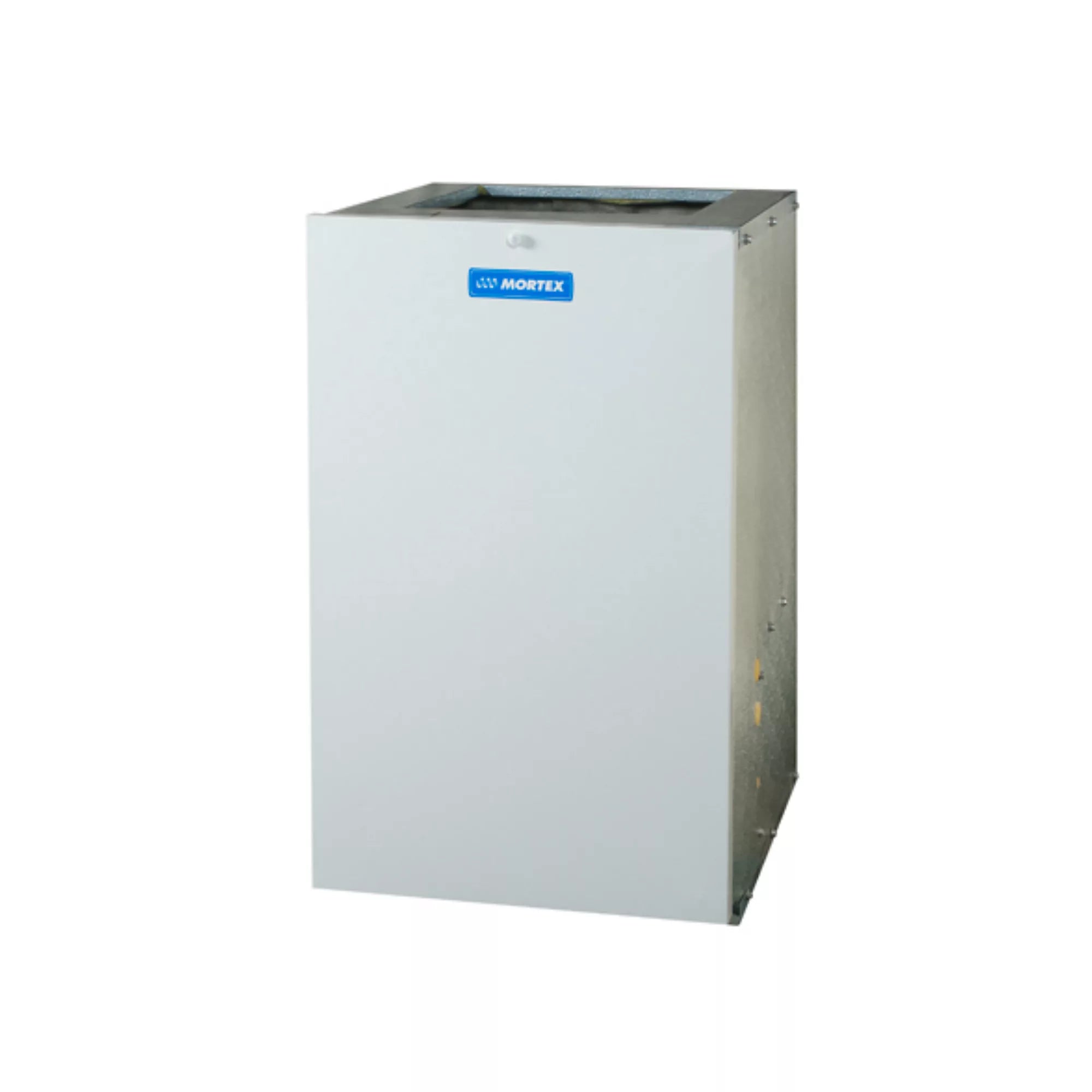

Mortex E30B5D015ABD Electric Furnace 3/4 HP 15kW

Product Description

The MORTEX E30B5D015ABD is an electric furnace with a 3/4 HP CT motor and a 15kW electric heat range. Designed for indoor air handler unit (AHU) usage, it supports both upflow and downflow air directions. The furnace features two heating stages and operates on 208-240 VAC at 50/60 Hz.

• Blower motor with 5 speeds and RPM range of 0-1400.
• Provides 34000 BTU output and CFM range of 1080-1680.
• Maximum Overcurrent Protection (MOCP) of 90.

Product Highlights

This electric furnace is ideal for providing efficient and consistent heating in residential or commercial spaces. Part of the E-30 product family, it offers a reliable heating solution.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B5D015ABD
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Upflow / Downflow
• Blower Motor HP: 3/4 HP
• Blower Motor RPM: 0-1400
• Blower Motor Speeds: 5
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Mortex
• BTU Output: 34000
• CFM: 1080-1680
• Cycle/Hertz: 50/60 Hz
• Electric Heat Range [kW]: 15
• Energy Star Rated: No
• Equipment Type: Furnace
• ETL Listed: No
• Filter Size: No Filter
• Furnace Type: Electric
• Heating Stages: Two Stage
• Height: 33
• Includes Filter Rack: No
• Length: 24
• Phase: Single
• Product Family: E-30
• Prop 65: No
• Stage: Two
• UL Listed: No
• Voltage: 208-240 VAC
• Width: 20
• Maximum Overcurrent Protection (MOCP): 90
• Country of Origin: USA
• Blower Wheel Diameter: 9"
• Blower Wheel Width: 10"
• Duty: Continuous
• Weight: 87
• Motor HP: 3/4 HP
• BTU Input: 34000
• UL Recognized: No
• Service Factor: 1.0
• Blower Wheel Size: 10"x9"
