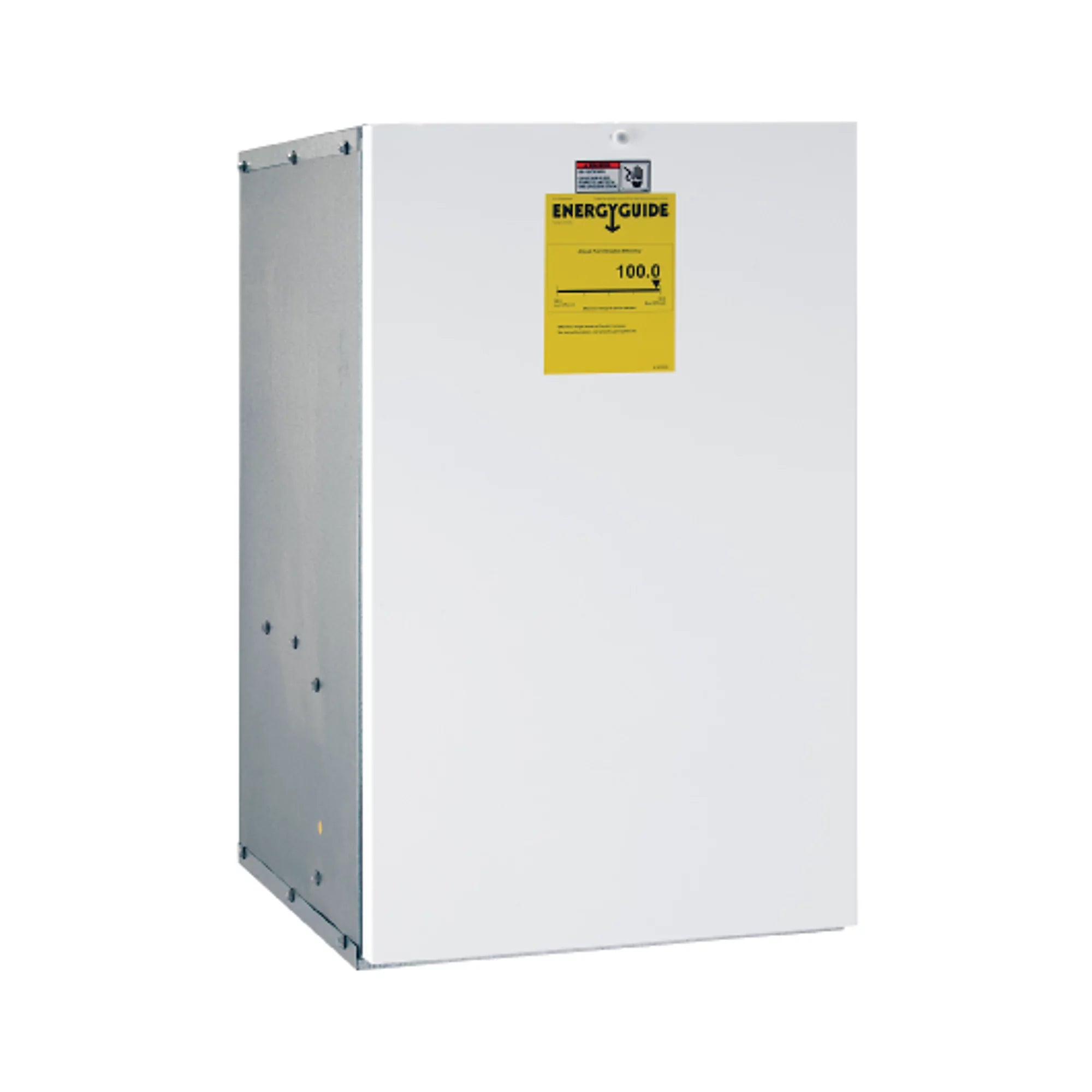

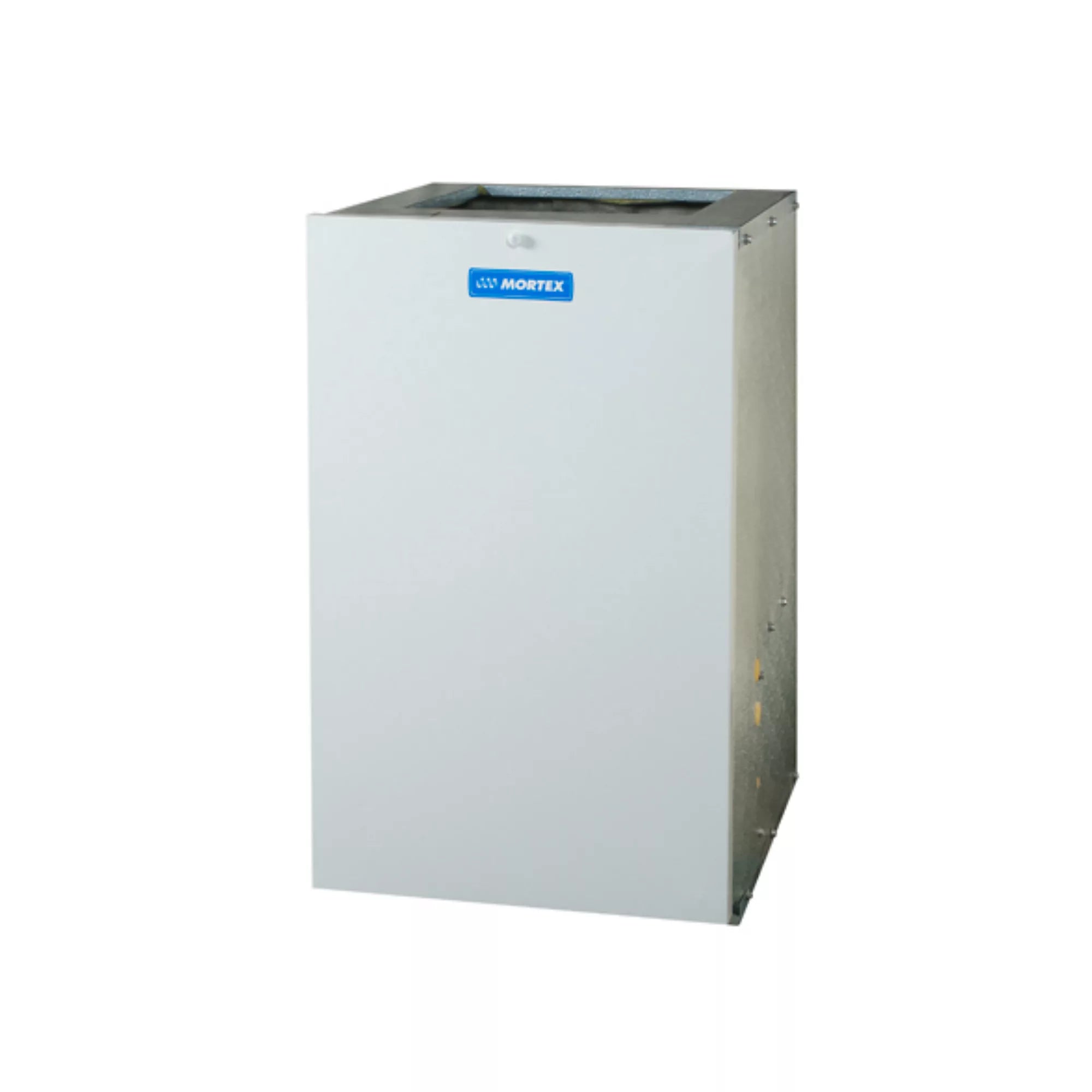

Mortex E30B5D015ABC Electric Furnace 3/4 HP, X-13, 5-Speed, Downflow, 15 kW Heater, Two Stage Heat

Product Description

The Mortex E30B5D015ABC is an electric furnace with a 3/4 HP, X-13, 5-speed motor designed for downflow applications. It features a 15 kW heater and two-stage heat functionality. This unit is suitable for indoor air handling units (AHU) and operates at 208-230 VAC and 60 Hz. It does not include a filter rack.

• Equipped with a 3/4 HP ECM (Electronically Commutated Motor)
• Features a 15 kW electric heater with two-stage heating
• Designed for downflow air direction

Product Highlights

The Mortex E30B5D015ABC electric furnace provides efficient heating with its multi-speed motor and two-stage heat, ideal for maintaining consistent temperatures.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B5D015ABC
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Downflow
• Blower Motor HP: 3/4 HP
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Mortex
• BTU Output: 51182.124624000004
• CFM: 1200-2000
• Cycle/Hertz: 60 Hz
• Electric Heat Range [kW]: 15
• Energy Star Rated: No
• Equipment Type: Furnace
• ETL Listed: Yes
• Filter Size: Not Filtered on Unit
• Furnace Type: Electric
• Heating Stages: Two Stage
• Includes Filter Rack: No
• Length: 24
• Phase: Single
• Product Family: Electric Furnace
• Prop 65: No
• UL Listed: No
• Voltage: 208-230 VAC
• Width: 20
• Country of Origin: USA
• Height: 33
