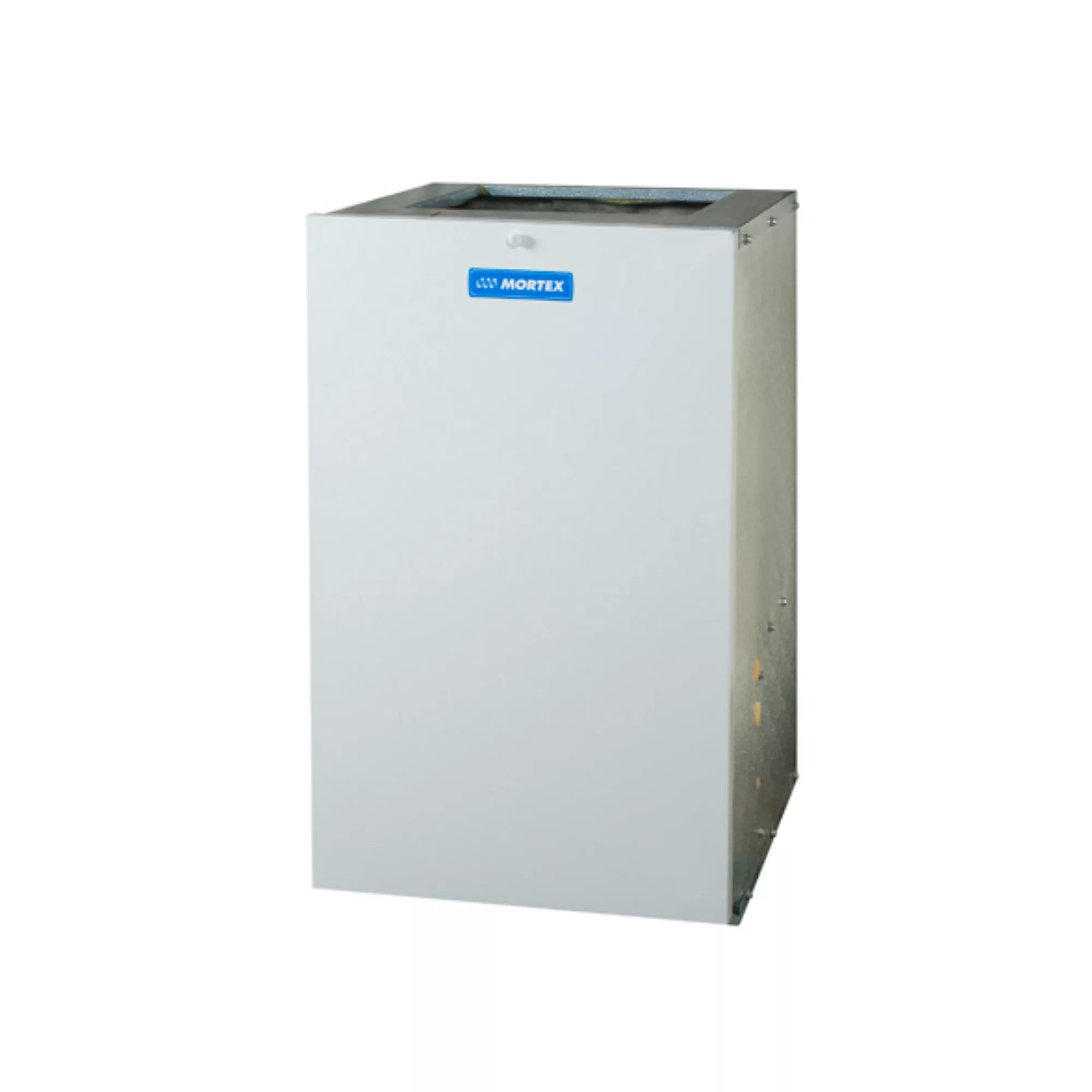

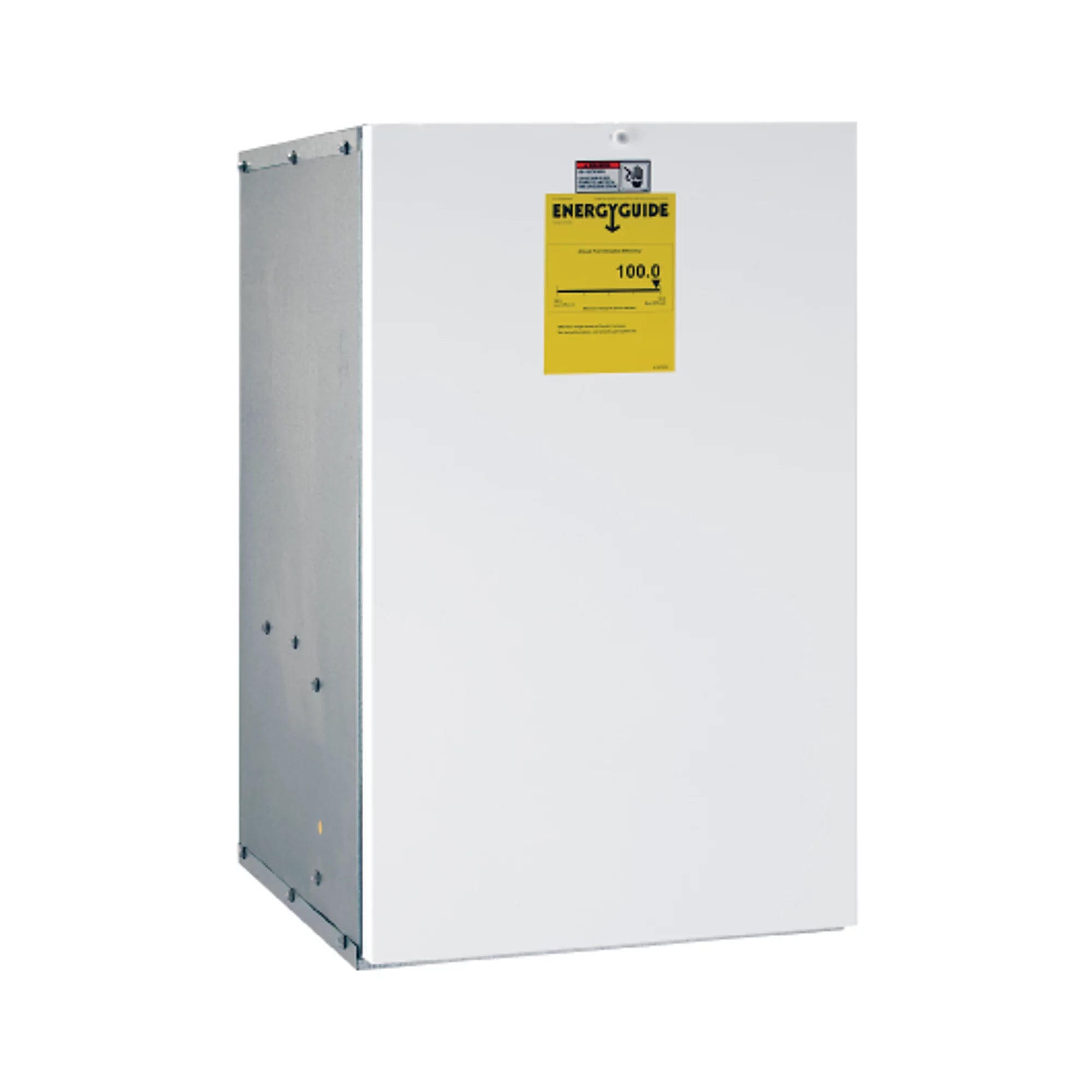

Mortex E30B5D010AAD Electric Furnace, 10 kW

Product Description

The MORTEX E30B5D010AAD electric furnace provides 10 kW of power for indoor air handling units. This single-stage electric furnace is ETL listed and designed for downflow air direction. It features a 3/4 HP ECM blower motor with five speeds, delivering 1074 CFM for heating and 1680 CFM for cooling.

• Features a FER compliant ECM motor (constant torque)
• Heat pump ready
• Built-in time delay relay (TDR)

Product Highlights

The MORTEX E30B5D010AAD electric furnace is ideal for providing efficient and reliable heating in residential applications.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B5D010AAD
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Indoor AHU
• Air Flow Direction: Downflow
• Blower Motor HP: 3/4 HP
• Blower Motor RPM: 0-1400
• Blower Motor Speeds: 5 (Five)
• Blower Motor Type: ECM (Electronically Commutated Motor)
• Brand: Mortex
• BTU Output: 34121
• CFM: 1074
• CFM Cooling: 1680
• CFM Heating: 1074
• Cycle/Hertz: 60 Hz
• Electric Heat Range [kW]: 10
• Energy Star Rated: No
• Equipment Type: Furnace
• ETL Listed: Yes
• Furnace Type: Electric
• Heating Stages: Single Stage
• Height: 33
• Includes Filter Rack: No
• Length: 23.5
• Phase: Single
• Product Family: E30
• Rated Current Amps (RCA): 41.66
• Rated Load Amps (RLA): 45.77
• Voltage: 240 VAC
• Width: 19.75
• Maximum Overcurrent Protection (MOCP): 60
• Country of Origin: USA
• Blower Wheel Diameter: 9"
• Blower Wheel Width: 10"
• Blower Wheel Size: 10"x9"
• Series: E30
• Voltage Rating: 240 VAC
• Configuration: Downflow
• HP Rating: 3/4 hp
• Frequency Rating: 60 Hz
• Motor Type: ECM
• Temperature Rating: 40 to 100 deg F
• URI Part Number: E30B5D010AAD
• Vendor Part Number: E30B5D010AAD
