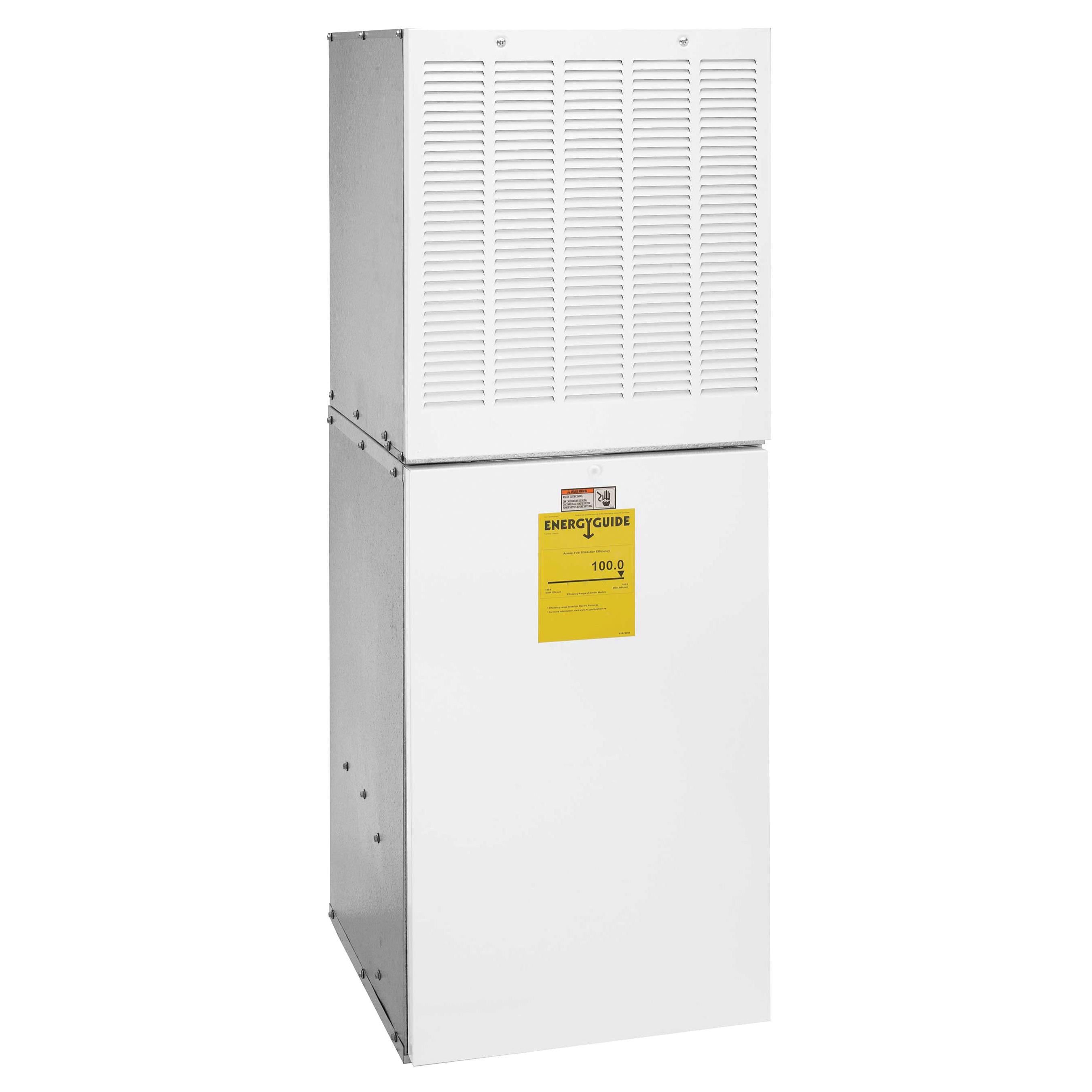

Mortex E30B4D015ABE Electric Furnace With Coil Cabinet 15 kW 3 ton E30B4D015ABD

Product Description

The MORTEX E30B4D015ABE Electric Furnace is part of the E30 Series, designed for mobile home applications. This 2-stage, downflow configuration furnace operates at 208/240 V and 4.3 A, delivering 15 kW of power. It features a 1/2 hp constant torque motor with a 975 cfm rating, suitable for 3 ton systems. The unit has a temperature rating of 185 deg F and dimensions of 19.8 in L x 23.4 in W x 33 in H.

• Offers heat capacities ranging from 6 to 20 kW.
• Easily convertible from downflow to upflow configuration.
• Includes circuit breakers, eliminating the need for fuse replacement.

Product Highlights

Designed for mobile home applications, this electric furnace features a fully insulated cabinet, zero clearance to combustible materials, and heavy-duty Nichrome heating elements for efficient operation.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B4D015ABE

Technical Specifications

• Series: E30 Series
• Tonnage: 3 ton
• Input Voltage: 208/240 V
• Input Current: 4.3 A
• Configuration: Downflow
• Airflow Rating: 975 cfm
• Motor Horsepower: 1/2 hp
• Frequency: 60 Hz
• Phase: 1 ph
• Motor Type: Constant Torque
• Operating Temperature: 185 deg F
• Stages: 2-Stage
