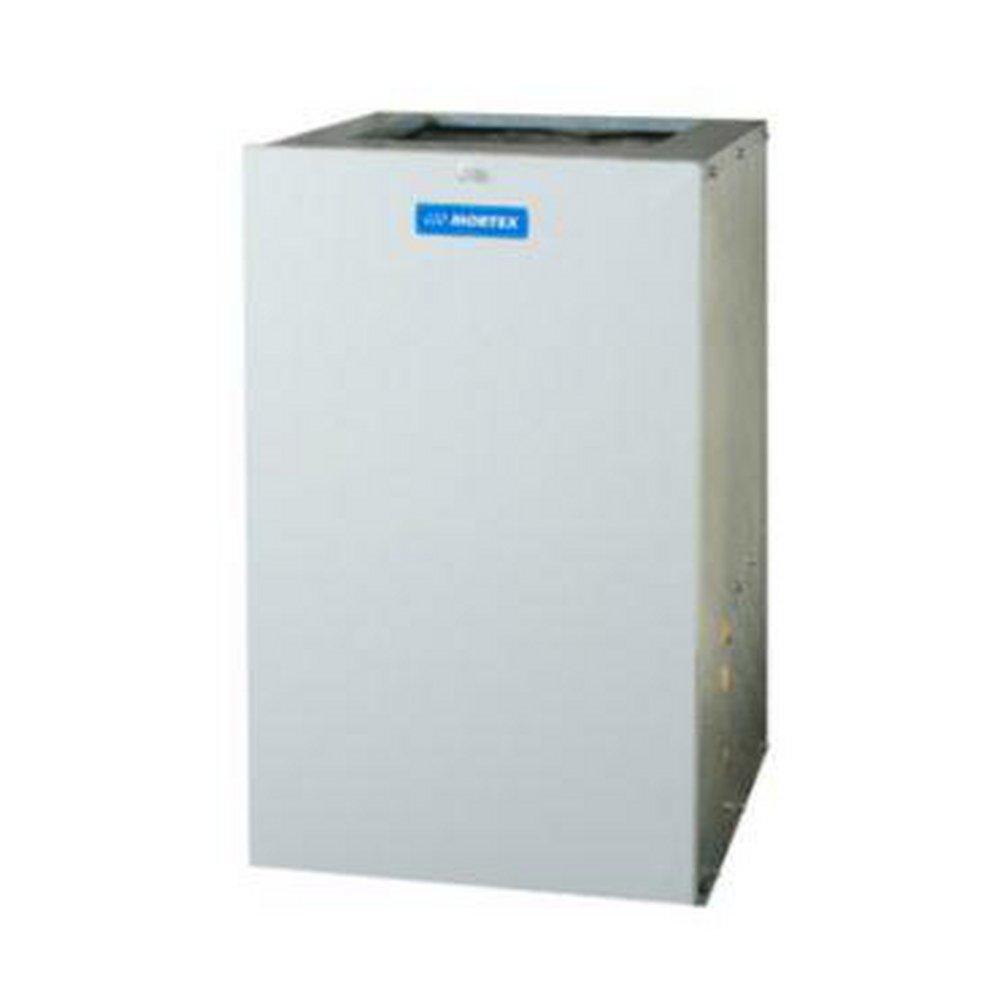

Mortex E30B4D010AAF E30 Electric Furnace 10kW FER Rated 2.5-3.5 AC Capacity

Product Description

The MORTEX E30B4D010AAF E30 electric furnace features a 10kW FER rated capacity of 2.5-3.5 AC. It is equipped with a FER compliant ECM motor with constant torque and is heat pump ready. Optional electric heat is available from 6kW-20kW. HVAC equipment products are sold to licensed contractors only.

• FER compliant ECM motor (constant torque)
• Heat pump ready
• Multiple premium coil cabinets/return grille options
• Built in time delay relay (TDR)

Product Highlights

This electric furnace is designed for downflow or horizontal configurations and includes a built-in time delay relay.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: E30B4D010AAF

Technical Specifications

• AFUE: 100.00 %
• AMP: 50, 60
• BTU: 34000
• Collection: E30 Series
• Condensing: No
• Configuration: Downflow
• Depth: 23.4 in
• Energy Star Compliant: No
• Fan Speeds: 5
• Gas Valve Stages: Single-Stage
• Height: 33 in
• Horsepower: 1/2 hp
• Length: 23.5 in
• MBH: 34
• Phase: Single Phase
• Power Source: Electric
• Temperature Range: 30 to 90 Deg F
• UL Listed: No
• Volts: 240V
• Watts: 10 kW
• Width: 19.8 in
