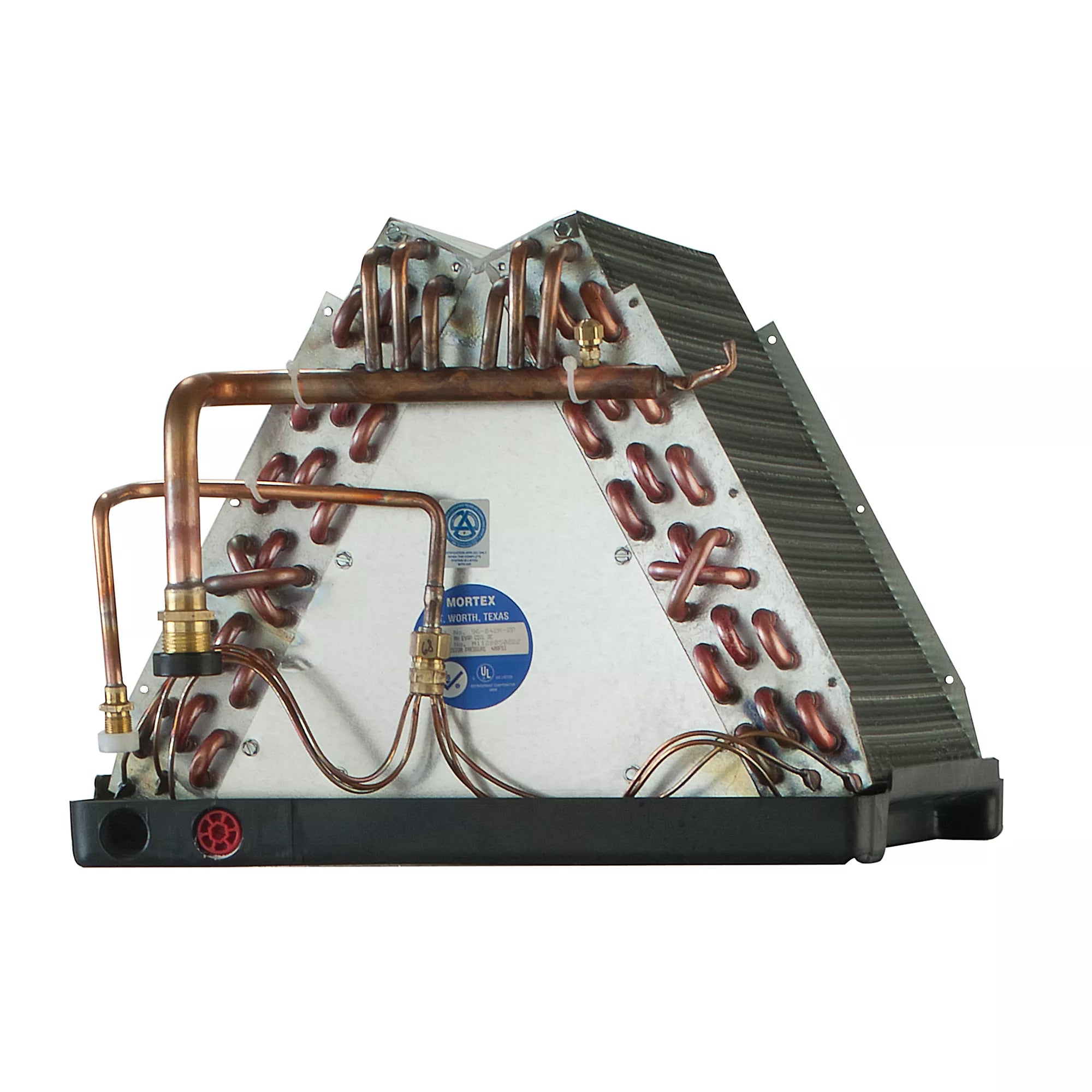

Mortex 96-8G4K-0P 2.5 Ton Uncased Evaporator Coil, Vertical, R-22; R-410A

Product Description

The MORTEX 96-8G4K-0P is a 2.5 Ton Evaporator Coil with Piston 410A and sweat fittings. Designed as an uncased, vertical A-Coil, it supports both R-22 and R-410A refrigerants. This indoor coil is constructed with aluminum fins and copper pipes, and it features a fixed metering device.

• Supports R-22 and R-410A refrigerants
• Features copper connection type and aluminum coil fin material
• Designed for upflow/downflow air direction

Product Highlights

2.5 ton uncased evaporator coil designed for indoor use with R-22 and R-410A refrigerants.

Product Information

Standard Information

• Brand: MORTEX
• Manufacturer Part Number: 96-8G4K-0P
• Country of Origin: USA

Technical Specifications

• AHRI - Usage: Indoor Coil
• Air Flow Direction: Upflow / Downflow
• Brand: Mortex
• Cased: No
• Coil Fin Material: Aluminum
• Coil Pipe Material: Copper
• Coil Shape Designation: A-Coil
• Coil Type: Evaporator
• Connection Type: Copper
• Cooling Capacity: 30000
• Corrosion Protected Coil: No
• Drain Connection Quantity: 2
• Drain Connection Size: 3/4"
• Inlet Connection Size: 3/8"
• Liquid Line Fitting Type: Sweat or Braze
• Metering Device: Piston or Flowrator - Fixed Metering Device
• Outlet Connection Size: 3/4"
• Refrigerant: R-22; R-410A
• Suction Line Fitting Type: Sweat or Braze
• Suction Line Size (OD): 3/4"
• UL Listed: Yes
• Width: 18
• Country of Origin: USA
• Tonnage: 2.5-4
• Equipment Type: Straight Cool
• Fins per Inch (FPI): Proprietary
• Vendor Name: Mortex
• URI Part Number: 968G4K0P
• Vendor Part Number: 96-8G4K-0P
• Prop 65: Yes
