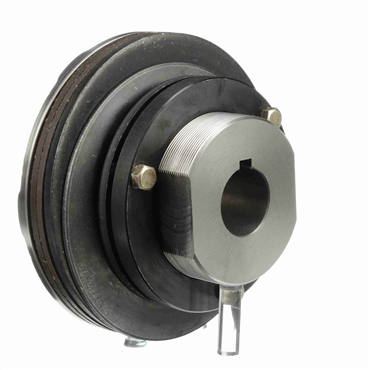

Morse 700A2TL11/2FB Torque Limiter - 1-1/2 in Bore - Finished with Keyway

Product Description

The Morse 700A2TL11/2FB is a torque limiter designed for effective overload protection in machinery. It features a finished bore with a keyway and is suitable for a one and one-half inch bore size.

• Torque capacity of 800 ft-lbs
• Maximum speed of 1000 RPM
• Compact and economically designed

Product Highlights

This Morse torque limiter is vital for protecting machinery by preventing overloads. With its practical design, it allows for easy installation and adjustment.

Product Information

Standard Information

• Brand: Morse
• MPN: 700A2TL11/2FB

Technical Specifications

• Bore Diameter: 1.5000 inches
• Outside Diameter: 7.0000 inches
• Overall Length: 3.8750 inches
• Max RPM: 1000 RPM
• Torque Capacity: 800 ft-lbs
• Backlash: Zero
• Minimum Sprocket Teeth: #50 (40 Teeth), #60 (35 Teeth), #100 (21 Teeth)
• Manufacturer UPC Number: 662288479192
