Morse 262Q56LR60 Raider Plus 60:1 Ratio Right Angle Worm Gear Speed Reducers

Product Description

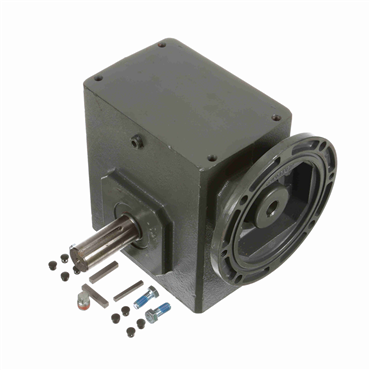

The Morse 262Q56LR60 is a Raider Plus right angle worm gear speed reducer that features a 60 to 1 ratio. This single reduction unit is designed for enhanced performance in mechanical power transmission applications. With a center distance of two point six three inches, it is suitable for a variety of setups. The C-face quill input accommodates an input size of zero point six two five inches, while the unit supports both left and right hand output configurations.

• High lead angle worm is case hardened and polished.
• Large single row ball bearings handle higher input speeds.
• Built from rugged cast iron for long-term durability.

Product Highlights

This reducer is ideal for applications requiring reliable power transmission with minimal maintenance. Its robust construction ensures consistent operation, even under demanding conditions.

Product Information

Standard Information

• Brand: Morse
• Country of Origin: United States

Technical Specifications

• Reduction Type: Single
• Input Size: 0.6250 inches
• Output Size: 1.1300 inches
• Center Distance: 2.63 inches
• Housing Material: Cast Iron
• NEMA / IEC Frame Size: 56C
• Maximum Output RPM: 29.1 rpm
• Maximum Input Horsepower: 1.216 hp @ 1750 rpm
