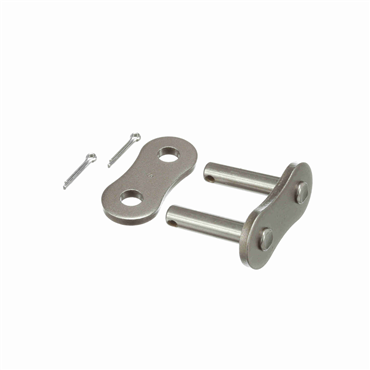

Morse 100H CONN CSF | Single Strand ANSI Roller Chain Link

Product Description

The Morse 100H CONN CSF is a single strand ANSI roller chain link designed for heavy-duty applications. It features a cotter pin slip fit connecting design, making it easy to install and secure. This connecting link is compatible with various chain series including 100, 100-2, and 100-3.

• Heavy-duty construction.
• Compatible with multiple chain series.
• Rated working load of 2400 lbs.

Product Highlights

This product is ideal for applications requiring robust chain connections and high load capacities.

Product Information

Standard Information

• Brand: Morse
• MPN: 100HCONNCSF

Technical Specifications

• Link Plates Thickness: 0.16 in
• Duty: Heavy Series
• Chain Series: 100, 100-2, 100-3, 100-4, 100-6, 100-8
• Roller Diameter: 3/4 in
• Pin Overall Length: 1.684 in
• Pin Length (Lc): 0.76 in
• Pin Material: Carbon Steel
• Roller Width: 3/4 in
• No. of Strands Across: 1
• Link Type: Cotter Pin, Slip Fit
• Chain Construction: Part (CL, Ol, RL)
• Material: Carbon Steel
• Link Plates Height: 1.13 in
• Chain Pitch: 1.25 in
• Chain No.: 100
• Type: Connecting (Master) Link
• Pin Length (Lr): 0.89 in
• Pin Diameter: 3/8 in
• Rated Working Load: 2400 lbs
• Chain Type: ANSI
• Weight: 0.28 lb
• EAN or UPC: 662288562597
