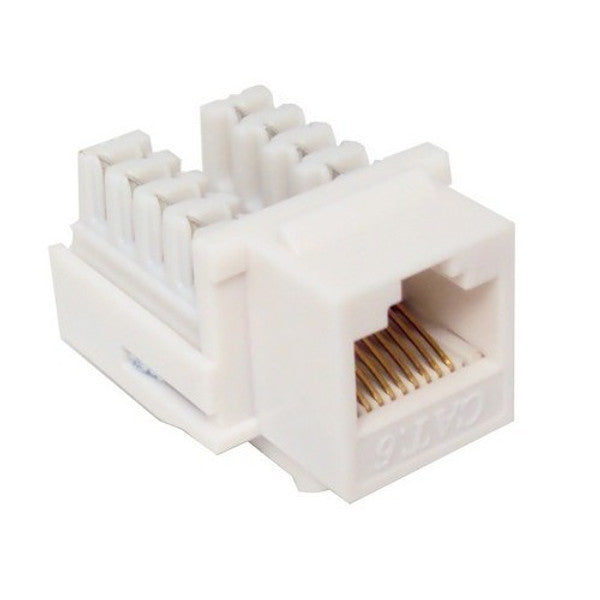

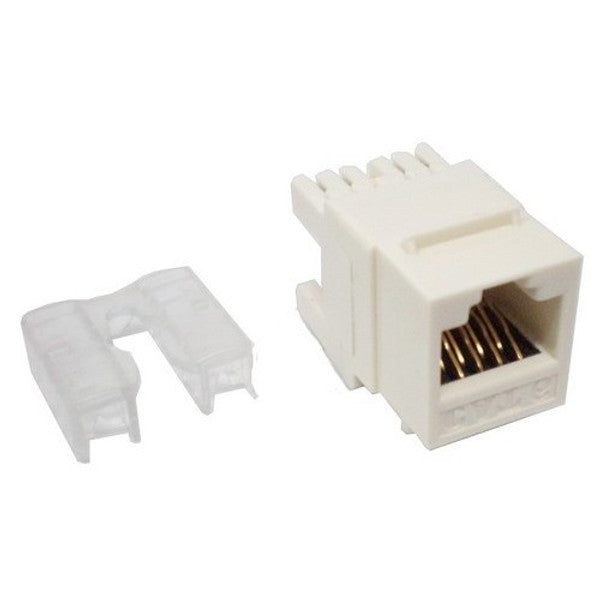

Morris Products CAT6-JACK-WT Unshielded RJ45 Keystone Jack, White

Product Description

The Morris Products CAT6-JACK-WT is an unshielded RJ45 keystone jack suited for data communications. It is made for high-speed data transfer. This jack works with twenty-two to twenty-six AWG solid and stranded wire.

• Suitable for high-speed datacommunications applications.
• Features 110 punch down and Krone type termination.
• Complies with TIA/EIA-568-C-2 and ISO 1801 2nd Edition Class E.

Product Highlights

This keystone jack allows for secure and efficient connections, making it ideal for networking setups.

Product Information

Standard Information

• Use: Cat6 Keystone Jack for High-Speed Data Communications
• Weight: 0.30 pounds

Technical Specifications

• Bandwidth: 250 MHz
• Data Transmission Rate: 10,000 Mbps (10 Gbps)
• Termination: 110 punch down and Krone Type
• Wire Gauge: 22-26 AWG Solid & Stranded
• Wiring Color Codes: TIA/EIA 568A & 568B
• Contact Plating: 50u Gold Plating
• Flammability Rating: UL94V-0
• UL Listed: Yes
