Morris Products 97696 Insulated Connector Dual Entry 6 Port

Product Description

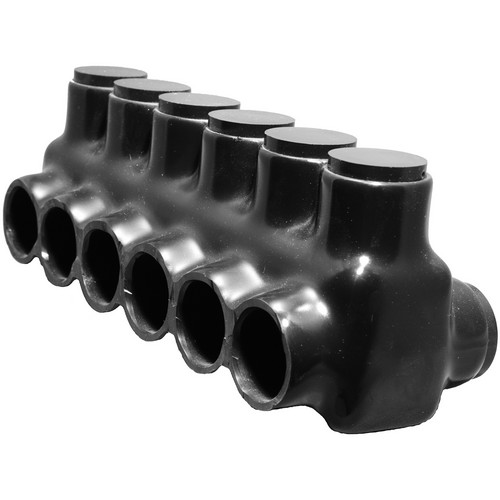

The MORRIS PRODUCTS 97696 is a black insulated multi-cable connector designed for electrical splicing and tapping applications. It features a dual side-entry configuration with six ports, accommodating wire sizes from 4 AWG to 500 kcmil. The insulated housing protects the connection point and simplifies multi-conductor joins in power distribution work. This connector is typically installed by licensed electricians on commercial and residential electrical systems where multiple large-gauge conductors must be terminated at a single point quickly and reliably.

This connector is suited for high-ampacity splicing and tapping tasks where several conductors of varying sizes need to be joined without the use of traditional compression lugs or split-bolt hardware. The dual side-entry design allows conductors to enter from two opposing sides, making it practical in tight junction boxes or pull sections where straight-through routing is not possible. It is a direct replacement for the NSI IPLD500-6 connector.

Key Features

• Dual side-entry design allows conductors to enter from two opposing directions
• Six ports accommodate multiple conductors in a single connector body
• Wire range of 4 AWG to 500 kcmil covers a wide span of large-gauge conductors
• Black insulated housing protects the connection and aids identification
• Simplifies splicing and tapping without compression tools or split-bolt hardware

Compatibility

Designed as an OEM-style replacement for the NSI IPLD500-6 insulated multi-cable connector. Compatible with copper conductors ranging from 4 AWG to 500 kcmil in dual side-entry splicing and tapping applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for the applicable voltage and ampacity rating. De-energize and lock out the circuit before making or breaking any connections. Verify that all conductors inserted into the connector ports meet the listed wire range before torquing or seating. Do not exceed the connector's listed conductor size range on any port.

Technical Specifications

• Wire Range: 4 AWG to 500 kcmil
• Number of Ports: 6
• Entry Style: Dual Side Entry
• Color: Black
• Insulation: Insulated

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97696
