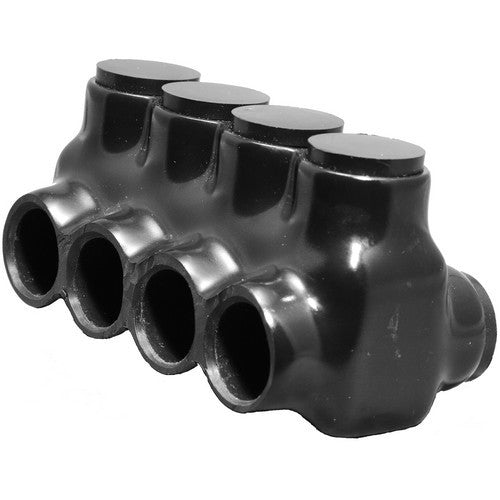

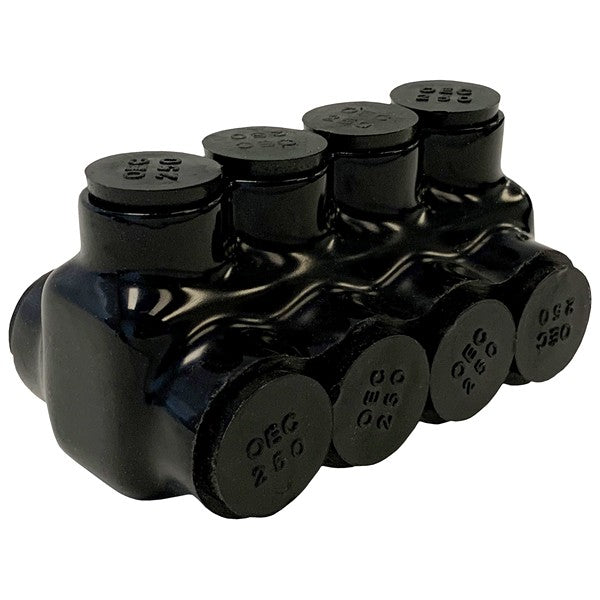

Morris Products 97694 black insulated multi-cable connector 600V dual entry 4 ports 500-4

Product Description

The Morris Products 97694 is a dual entry insulated multi-cable connector designed for electric splicing and tapping. It features wire entry from either side and is insulated with a rugged high-dielectric rubber/vinyl coating. Pre-filled with oxide inhibitor, it allows for easy re-entry for changes or inspection. This connector is CU9AL Dual Rated 6061-T6 Aluminum, compatible with copper and/or aluminum wires, and accommodates one wire per terminal. It is rated for 600V and supports a wire range of 500-4.

• Wire entry from either side of the connector.
• Insulated with rugged high-dielectric rubber/vinyl coating.
• Pre-filled with oxide inhibitor for corrosion prevention.

Product Highlights

CU9AL Dual Rated 6061-T6 Aluminum, compatible with copper and/or aluminum wires, accommodating one wire per terminal.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97694

Technical Specifications

• Dimensions: 4.35" x 3.03"
• Material: CU9AL Dual Rated 6061-T6 Aluminum
• Connector Type: Dual Entry
• Insulation Type: Rubber
• Maximum Voltage: 600V
• Temperature Rating: -49 to 194 Degrees F (-45 to 90 Degrees C)
• Wire Range: 500-4
• Number of Ports: 4
• Certifications: UL Listed, ANSI C119.4 & cULus 486b Listed thru 750MCM
• Wire Compatibility: Copper and/or Aluminum
• Wires per Terminal: One
