Morris Products 97693 Insulated Multi-Cable Connector Dual Entry 3 Ports 500-4 Wire Range 1-Pack

Product Description

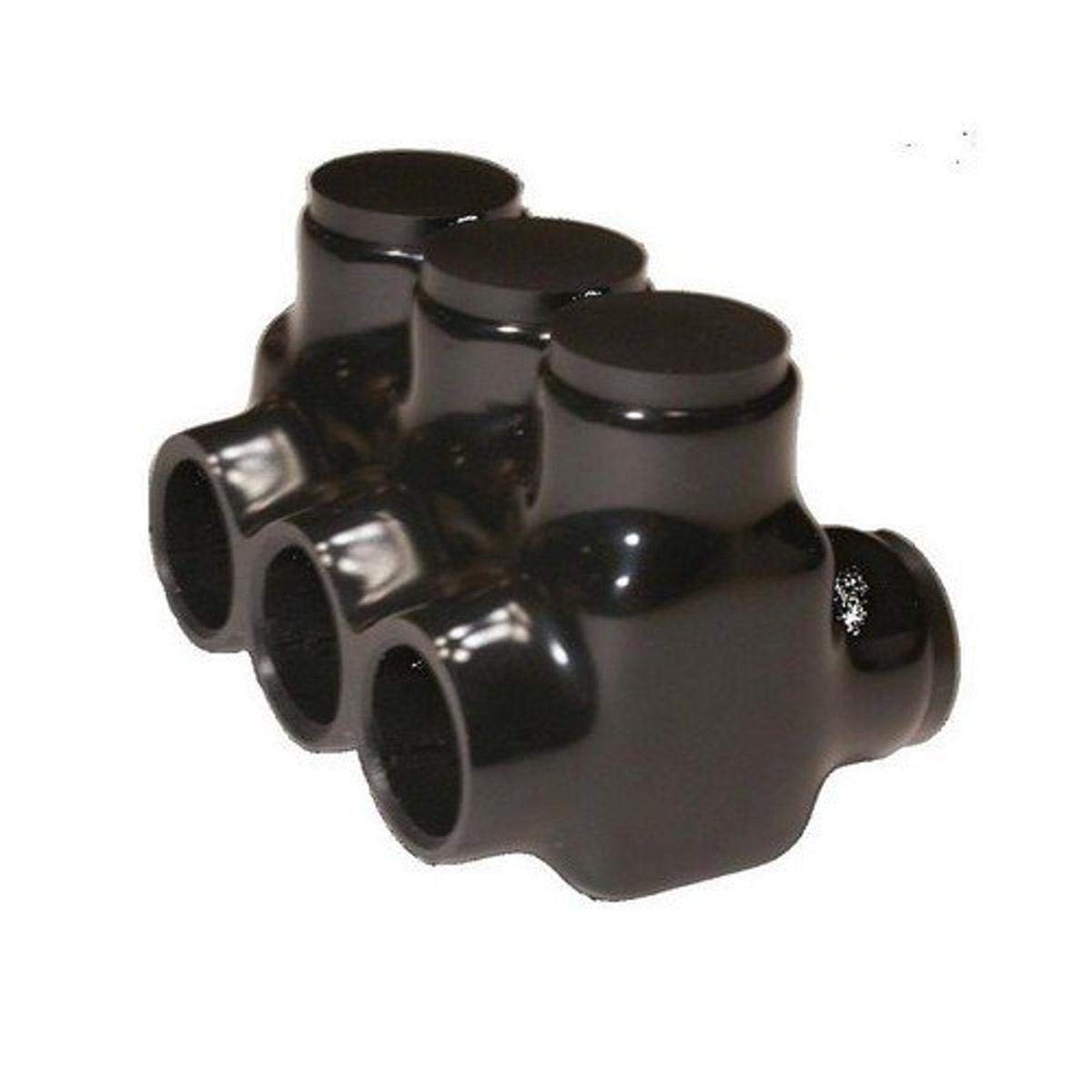

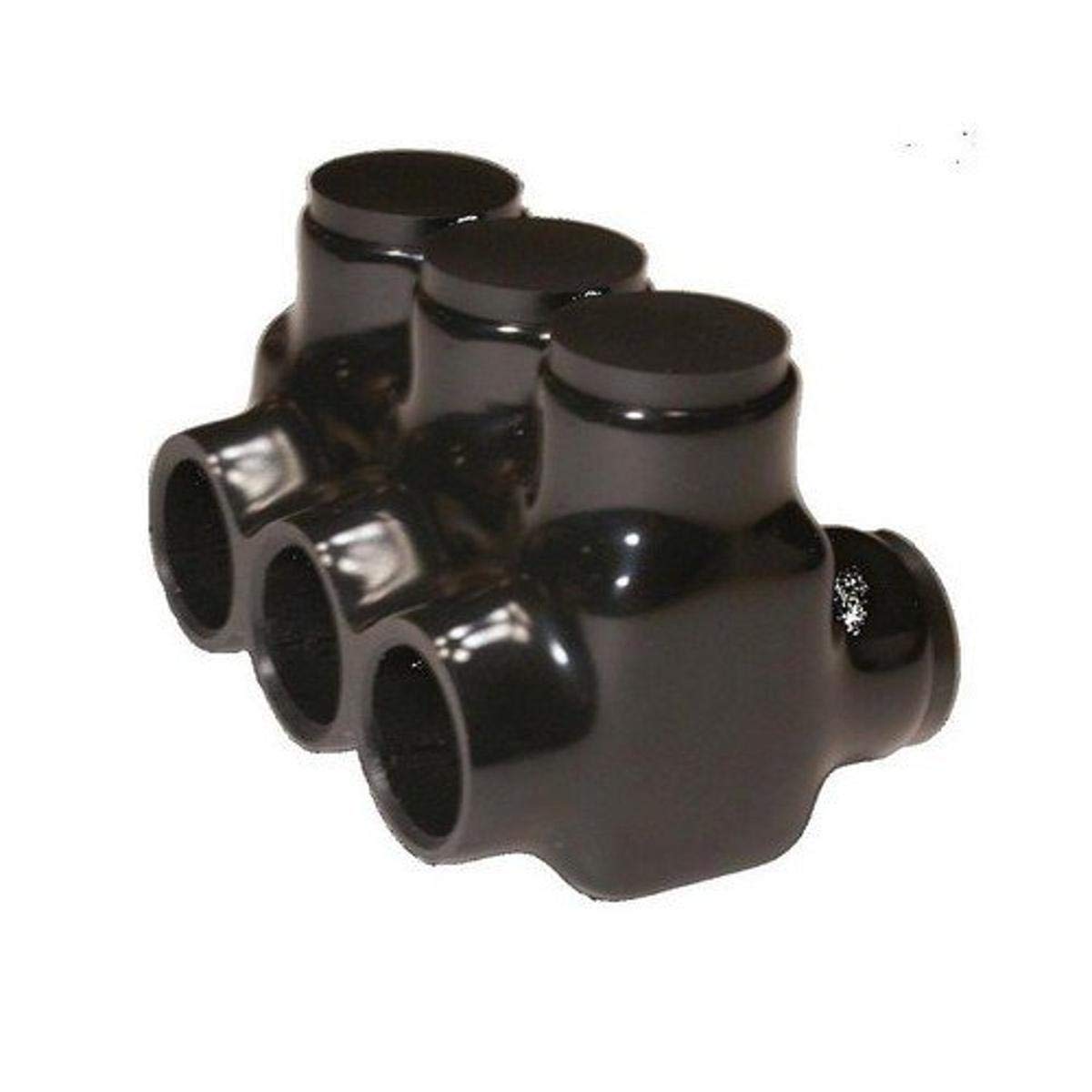

The MORRIS PRODUCTS 97693 is a black insulated multi-cable connector designed for dual entry with 3 ports, accommodating a 500-4 wire range. This CU9AL dual-rated 6061-T6 aluminum connector is compatible with both copper and aluminum wires, ensuring one wire per terminal. It operates within a temperature range of -49°F to 194°F (-45° to 90°C) and is rated for 600 Volt applications.

• Insulated with rugged high-dielectric Rubber/Vinyl Coating
• Pre-Filled with Oxide Inhibitor
• Easy Re-entry for Changes, Inspection or Troubleshooting

Product Highlights

Features plugs marked with connector max wire size for easy identification and is ANSI C119.4 & cULus 486b Listed thru 750MCM.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97693

Technical Specifications

• Color: Black
• Quantity: 1
• Temperature Range: –49°F to 194°F (–45° to 90°C)
• Rated Temperature: 194°F (90°C)
• Voltage Rating: 600 Volt
• Connector Material: CU9AL Dual Rated 6061-T6 Aluminum
• Wire Compatibility: Copper and/or Aluminum wires
• Terminals: One Wire per Terminal
• Certification: ANSI C119.4 & cULus 486b Listed thru 750MCM
• Entry Type: Dual Entry
• Ports: 3
• Wire Range: 500-4
• Insulation Material: rugged high-dielectric Rubber/Vinyl Coating
• Pre-Filled: Oxide Inhibitor
