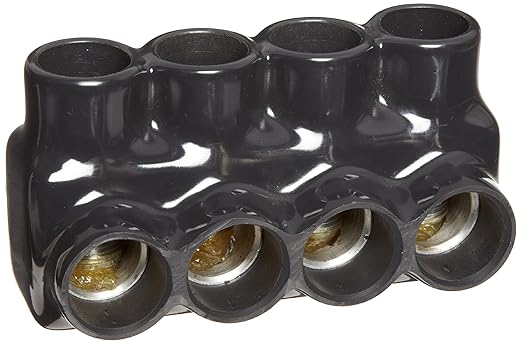

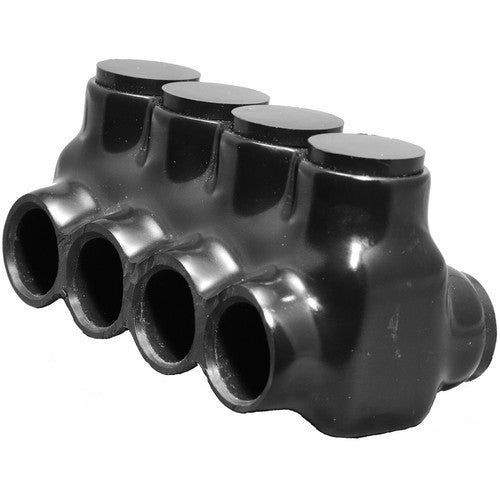

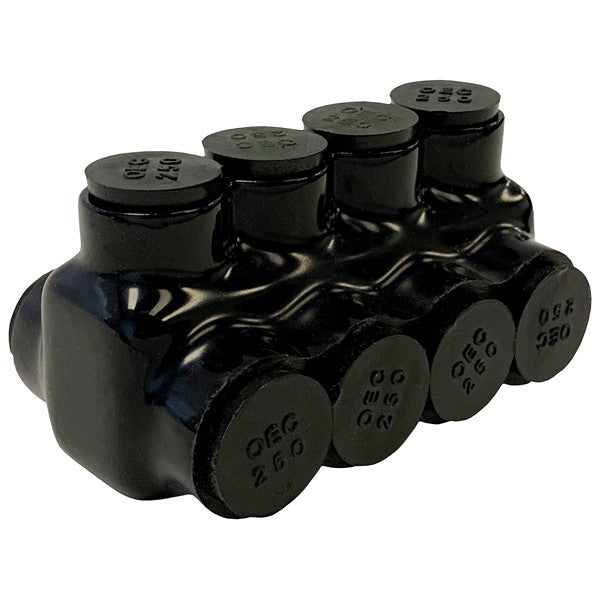

Morris Products 97674 insulated multi-cable connector 600 volt dual entry 4 ports 750-250 wire range 5-pack

Product Description

The Morris Products 97674 is a dual entry multi-cable connector designed for electrical splicing and tapping. It is constructed from CU9AL dual-rated 6061-T6 aluminum, compatible with both copper and aluminum wires, supporting one wire per terminal. This insulated connector operates within a temperature range of –49°F to 194°F (–45° to 90°C) and is rated for 600 Volt applications. It is ANSI C119.4 & cULus 486b Listed.

• Dual side entry for electrical splicing and tapping applications.
• Insulated with a rugged high-dielectric rubber/vinyl coating.
• Pre-filled with oxide inhibitor for enhanced conductivity and protection.

Product Highlights

Features easy re-entry for changes, inspection, or troubleshooting of wiring connections.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97674

Technical Specifications

• MPN: 97674
• Product Type: ELECTRONIC COMPONENT TERMINAL
• Manufacturer: Morris Products
• Brand: Morris Products
• Number of Items: 5
• Wire Range: 750-250
• Ports: 4
• Entry Type: Dual Entry
• Material: CU9AL Dual Rated 6061-T6 Aluminum
• Wire Compatibility: Copper and/or Aluminum wires
• Temperature Range: –49°F to 194°F (–45° to 90°C)
• Certifications: ANSI C119.4 & cULus 486b Listed thru 750MCM
• Voltage Rating: 600 Volt
• Wires per Terminal: One
• Insulation Material: Rugged high-dielectric Rubber/Vinyl Coating
• Oxide Inhibitor: Pre-Filled
• Plug Marking: Connector Max Wire Size
• Color: Black
