Morris Products 97664 insulated connector dual 600-4

Product Description

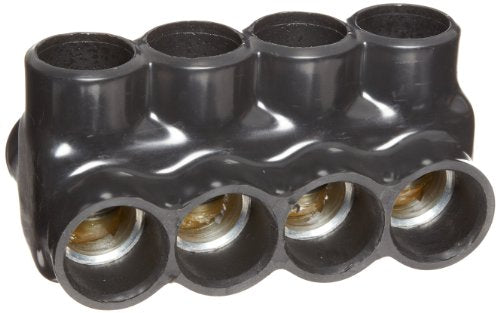

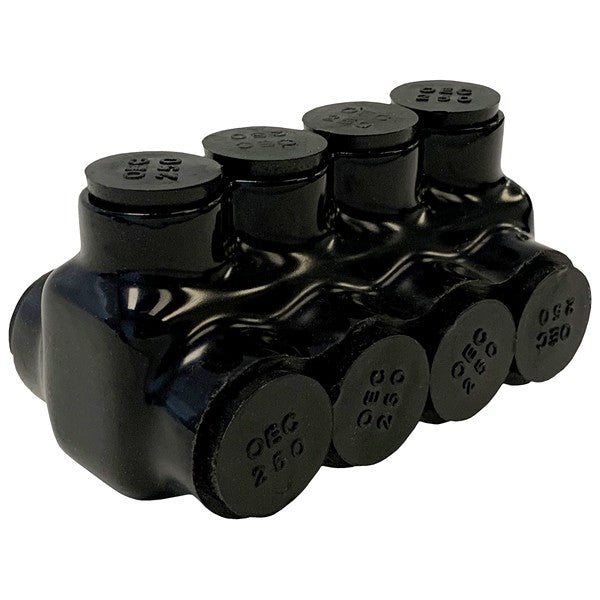

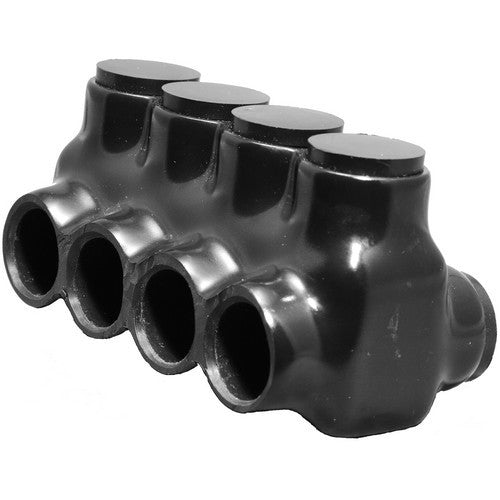

The Morris Products 97664 is a dual entry insulated multi-cable connector designed for electrical splicing and tapping applications. It features 4 ports and is rated for 600 volts, accommodating wire sizes from 600 to 250. Constructed from CU9AL Dual Rated 6061-T6 Aluminum, it is compatible with both copper and aluminum wires. The connector is insulated with a rugged high-dielectric rubber/vinyl coating and pre-filled with oxide inhibitor, ensuring reliable electrical connections. It supports wire entry from either side and allows for easy re-entry for inspection.

• Wire entry from either side of the connector.
• Insulated with rugged high-dielectric rubber/vinyl coating.
• CU9AL Dual Rated 6061-T6 Aluminum for copper and/or aluminum wires.

Product Highlights

Dual entry design simplifies electrical splicing and tapping with robust insulation and versatile wire compatibility.

Product Information

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97664

Technical Specifications

• Color: Black
• Material: CU9AL Dual Rated 6061-T6 Aluminum
• Connector Type: Dual Entry
• Insulation Type: rugged high-dielectric Rubber/Vinyl Coating
• Maximum Voltage: 600 Volt
• Temperature Range: –49°F to 194°F (–45° to 90°C)
• Wire Range: 600-250
• Number of Ports: 4
• Certifications: ANSI C119.4 & cULus 486b Listed thru 750MCM
• Wire Compatibility: Copper and/or Aluminum wires
• Wire Entry: Either Side of connector
• Inhibitor: Oxide Inhibitor (Pre-Filled)
• Plug Marking: Connector Max Wire Size
• Wires per Terminal: One
