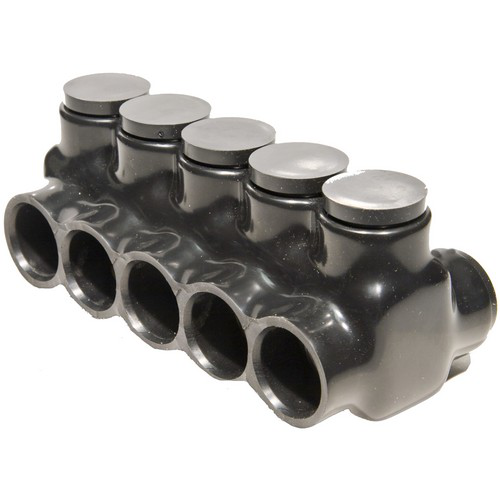

Morris Products 97655 Dual Entry 5 Port Connector 350-6 Awg

Product Description

The MORRIS PRODUCTS 97655 is a black insulated multi-cable connector designed for electrical splicing and tapping applications. It features a dual side-entry configuration with 5 ports, accepting conductor sizes ranging from 350 kcmil down to 6 AWG. The connector is factory-insulated, eliminating the need for additional tape or heat shrink at the joint. Electricians use this connector to make fast, reliable splices and taps on large-gauge power conductors in commercial and industrial wiring systems.

This connector is suited for branch-circuit splicing, service-entrance taps, and feeder connections where multiple large conductors must be joined at a single point. The dual side-entry design allows conductors to enter from two opposing sides, which simplifies routing in tight junction boxes, wireways, and pull sections. It accommodates a wide conductor range, making it practical for mixed wire sizes within a single splice point.

Key Features

• Dual side-entry configuration allows conductors to enter from two directions for flexible routing
• 5 ports accommodate multiple conductors at a single splice or tap point
• Accepts conductor sizes from 350 kcmil to 6 AWG
• Pre-installed black insulation eliminates secondary insulating steps after termination
• Designed for splicing and tapping on large-gauge power circuits

Compatibility

Designed as an OEM-style replacement for insulated multi-cable connectors used in commercial and industrial electrical splicing applications. Listed as a compatible alternative to NSI IPLD3505.

Installation Notes

Installation should be performed by a licensed electrician in accordance with NEC requirements for the applicable circuit and enclosure type. De-energize and lock out the circuit before making any connections. Verify that all conductors inserted into the connector fall within the 350 kcmil to 6 AWG range specified for this device. Do not exceed the port count or attempt to insert conductors outside the rated size range, as doing so can compromise the integrity of the connection.

Technical Specifications

• Number of Ports: 5
• Conductor Range: 350 kcmil to 6 AWG
• Entry Style: Dual side entry
• Insulation Color: Black

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97655
