Morris Products 97645 Insulated Connector Dual Entry 5 Port

Product Description

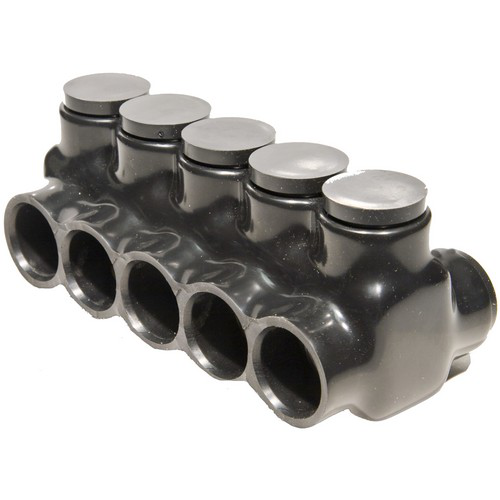

The MORRIS PRODUCTS 97645 is a black insulated multi-cable connector designed for electrical splicing and tapping applications. It features a dual side entry configuration with five ports, accepting conductors ranging from 250 kcmil down to 6 AWG. This type of connector is used by electricians to join multiple conductors in a single termination point without requiring additional insulating tape or heat shrink. The pre-insulated housing simplifies the splice process and helps maintain a clean, code-compliant installation in panel work, junction boxes, and service entry applications.

This connector is suited for residential and commercial electrical installations where multiple conductors must be joined or tapped at a single point. The dual entry design allows conductors to enter from two sides, making it practical for in-line splices and tap connections in tight enclosures. It is typically installed by licensed electricians working on branch circuits, service conductors, or distribution panels where a secure, insulated termination is required.

Key Features

• Dual side entry configuration allows in-line splicing and tap connections
• Five ports accommodate multiple conductor terminations in one connector
• Accepts conductor sizes from 250 kcmil to 6 AWG
• Pre-installed black insulated housing eliminates need for additional tape or heat shrink
• Designed for fast, straightforward installation in the field

Compatibility

Designed as an OEM-style replacement and direct equivalent to the NSI IPLD2505. Suitable for use with copper conductors ranging from 250 kcmil to 6 AWG in standard electrical splicing and tapping applications.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before making any connections. Verify that all conductor sizes are within the rated range of 250 kcmil to 6 AWG before inserting and securing conductors. Ensure the connector is fully seated and the insulated housing is intact before restoring power.

Technical Specifications

• Number of Ports: 5
• Entry Type: Dual Side Entry
• Conductor Range: 250 kcmil to 6 AWG
• Insulation Color: Black

Standard Information

• Brand: MORRIS PRODUCTS
• Manufacturer Part Number: 97645
