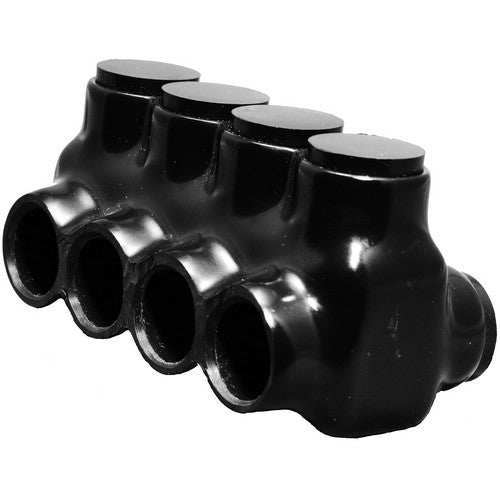

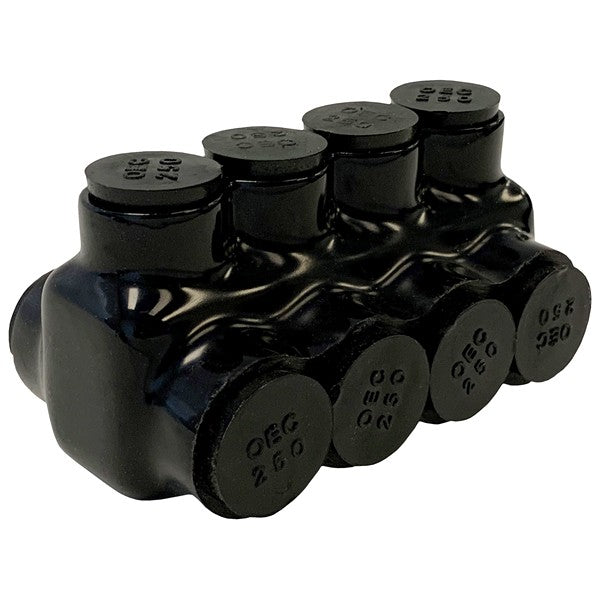

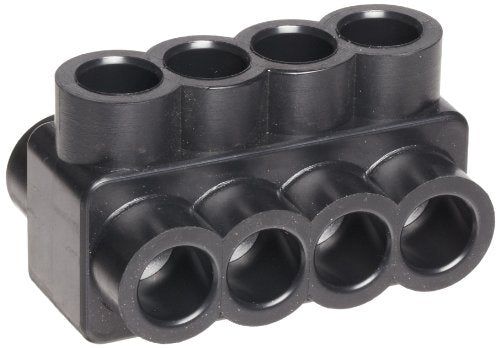

Morris Products 97614 Black Insulated Multi-Cable Connector - Dual Entry, 4 Ports, 4-14 Wire Range

Product Description

The Morris Products 97614 is a dual-entry black insulated multi-cable connector. It is designed for effective electrical splicing and tapping. Constructed from CU9AL dual-rated 6061-T6 aluminum, this connector is compatible with both copper and aluminum wires. The pre-filled oxide inhibitor enhances connection reliability. Each terminal has an easy re-entry feature for inspection or troubleshooting.

• Wire entry available from both sides.
• Insulated with a durable high-dielectric rubber/vinyl coating.
• Accommodates wires ranging from four to fourteen gauge.

Product Highlights

This connector is ideal for connections in various electrical applications, providing versatility and ease of use.

Product Information

Standard Information

• Brand: Morris Products
• Part Number: 97614

Technical Specifications

• Connector Type: Dual Entry
• Material: Aluminum, Rubber
• Number of Ports: 4
• Wire Range: 4-14
• Maximum Voltage: 600
• Temperature Rating: -49 to 194 Degrees F (-45 to 90 Degrees C)
• UL Listed: Yes
• Height: 1.45 inches
• Length: 1.92 inches
